Floor Plans

    Main Floor Plan

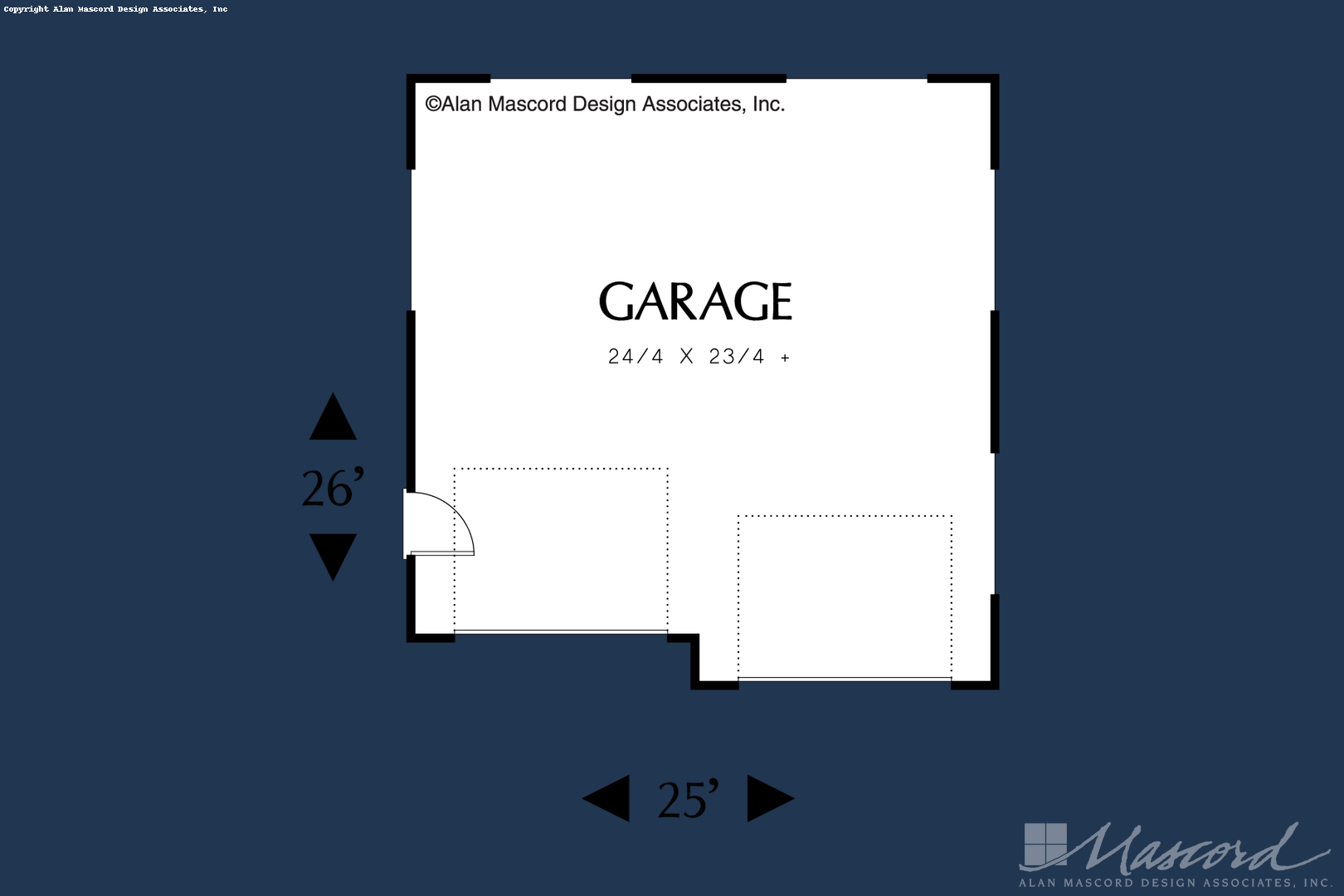

    Main Floor Plan image for Mascord Pikes Peak-Double Garage with Gable Fronts-Main Floor Plan

    A Walk Through The Pikes Peak

    To complement the look of a Craftsman-style home, this two-car garage features cedar shingles, and carriage lamps at each door. To brighten the interior, there are windows all around. If you prefer, you may complete the exterior with lap siding, brick or any material you choose to enhance the look of your home and landscape.

    Plan Details

    Beds and Baths

    • Floors1

    Exterior Dimensions

    • Width25'-0"

    • Depth26'-0"

    • Height (to Peak)20'-0"

    Garage

    • Garage Bays2 Car Garage

    • Garage Area626 sqft

    • Garage LocationFront

    • Garage OrientationStraight-On

    Structure

    • Roof FramingStick

    • Roof Material Shake/Comp Roof

    • Snowload25 lb/sf

    • Wall Framing2 x 6

    • Main Roof Pitch10/12
