• 2638 (+349 Bonus) ft²
  • 3 Bed
  • 2 / 1 Bath

Floor Plans

Main Floor Plan

Main Floor Plan

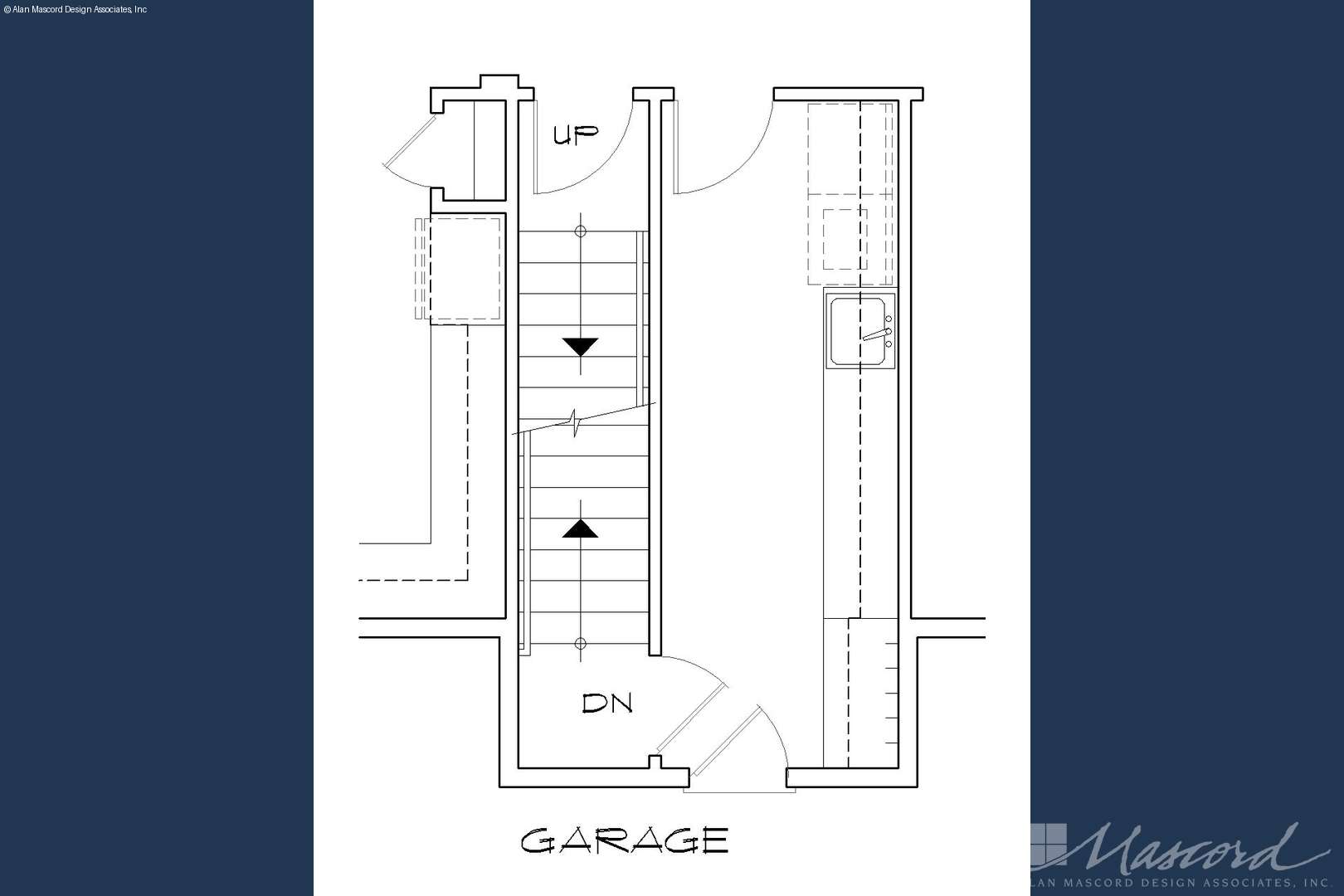

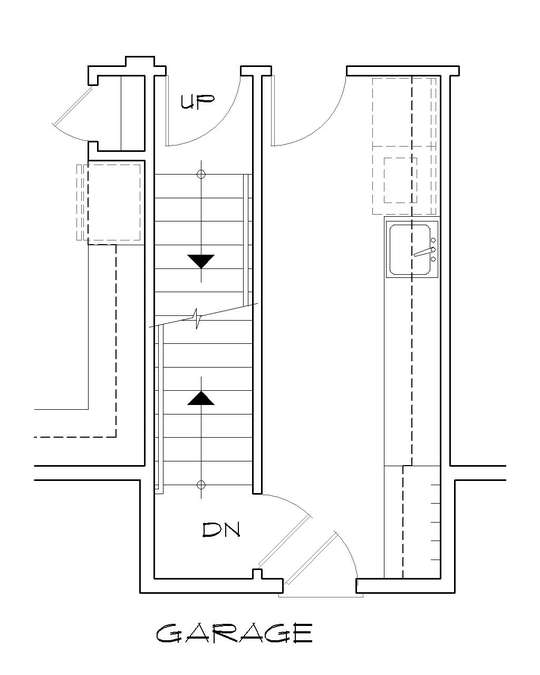

Basement Floor Plan

Basement Floor Plan

Images

Photographed Homes May Include Modifications Not Reflected in the Design

A Walk Through The Ravenwood

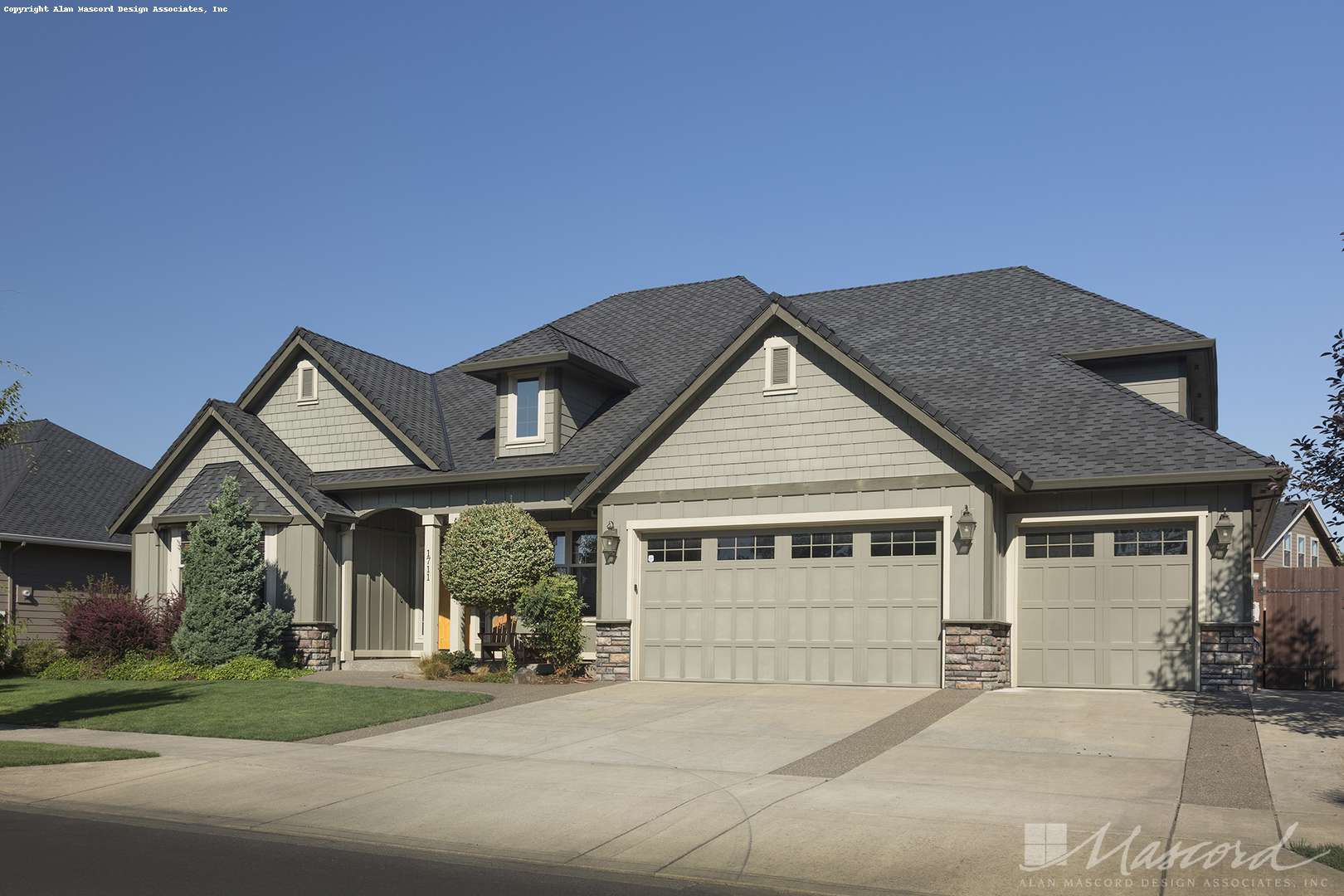

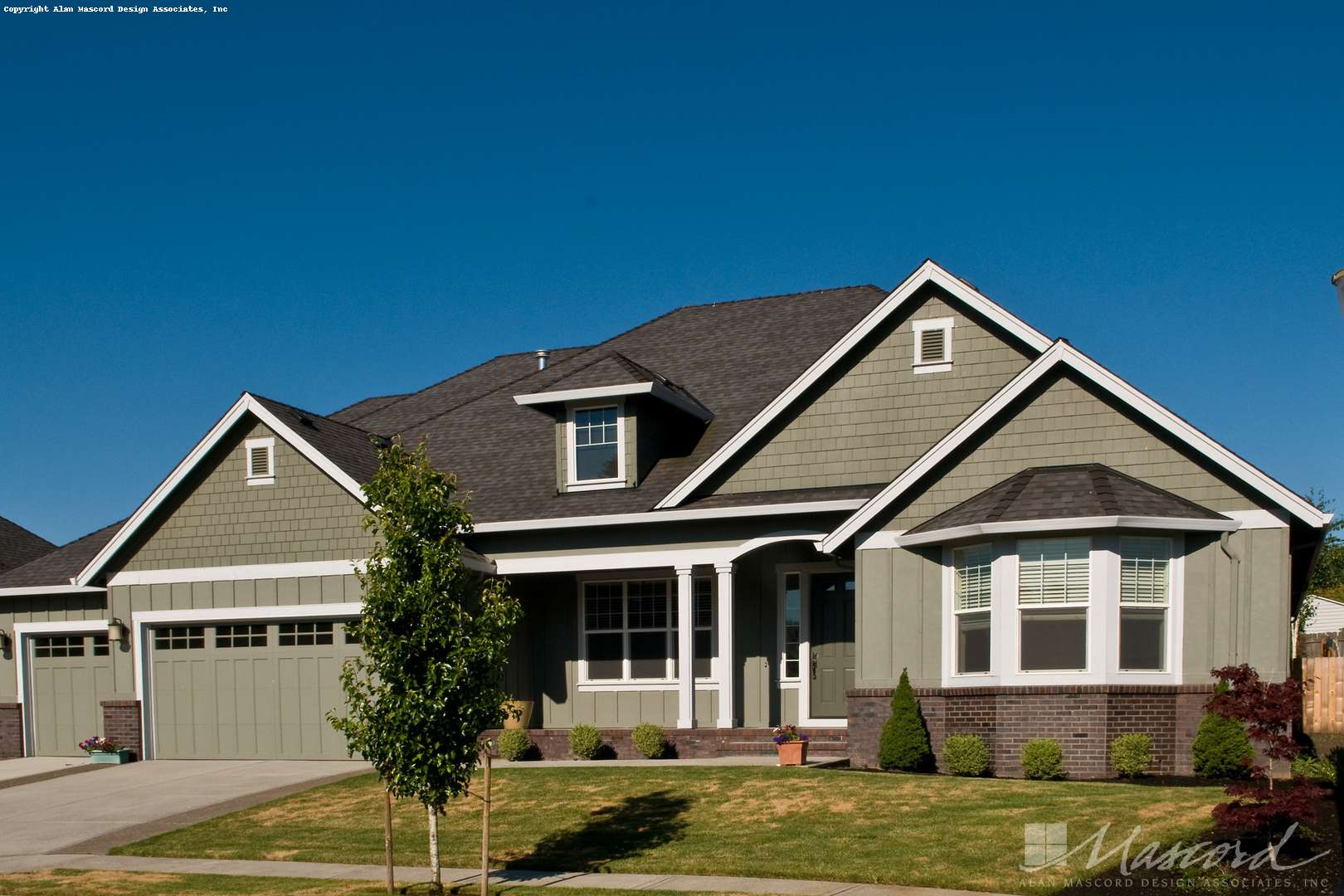

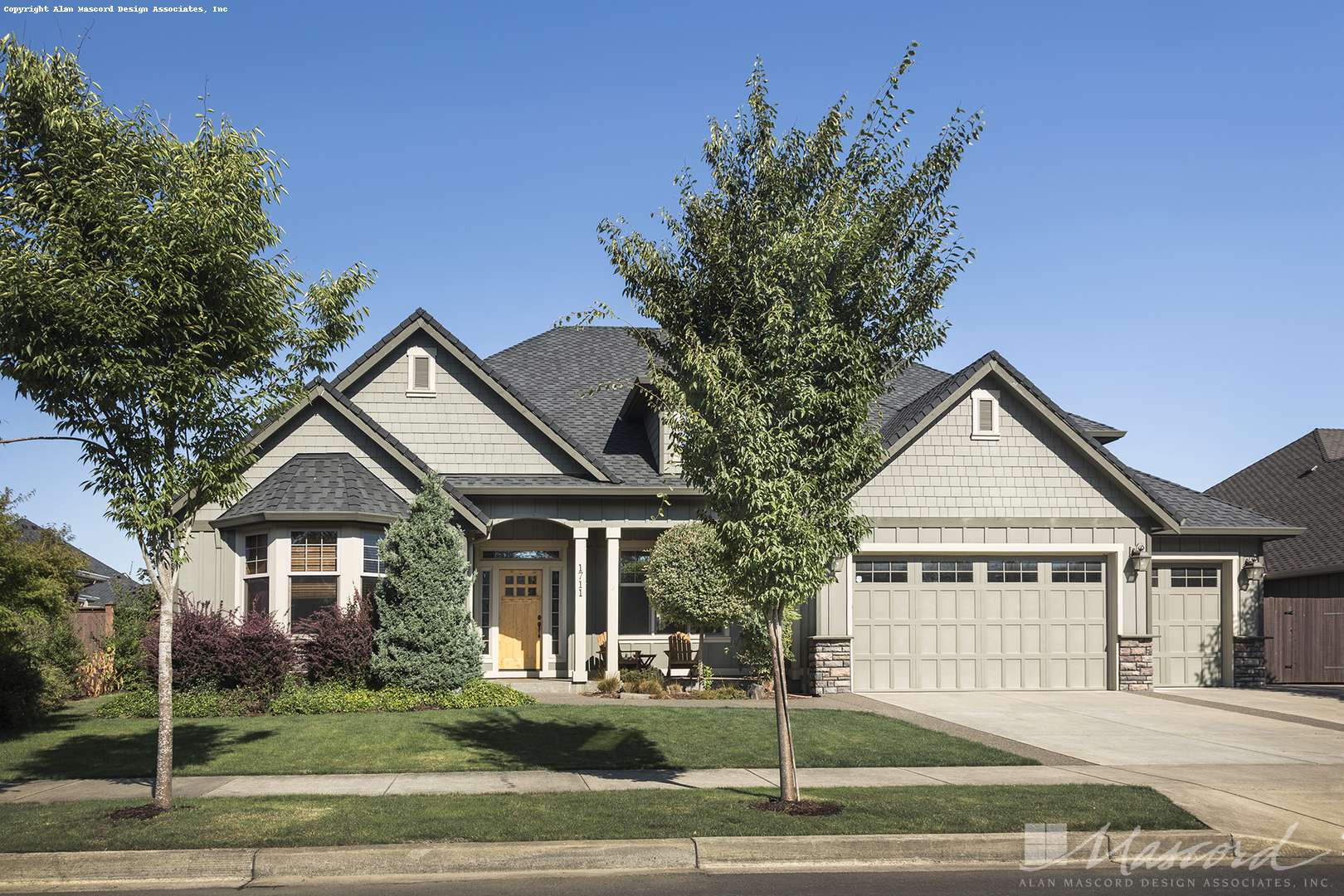

Cedar shingles, vertical board-and-batten siding, ledgestone, and Doric columns come together in an eclectic mix on this home's elevation. The floor plan is organized into public and private zones, to foster a sense of togetherness while ensuring solitude. The public spaces of the home are open and clustered together in the center of the plan. The foyer allows guests to survey the scene. First, there's the formal dining room, with built-in display shelves, space for a hutch, and a built-in seat. Beyond, the great room provides a view of the backyard through a wall of windows. The open kitchen and breakfast nook also take in the outdoor vistas, as well as views of the fireplace and built-in media cabinets. Private zones flank the public areas. The master suite and an office are together at one end of the floor plan. Separate corridors, off the great room and foyer respectively, lead to each space. The office has a bay window and the option of built-in cabinets, while a spa tub, large shower, dual-sink vanity, and walk-in closet outfit the master suite. At the other end of the floor plan, a hallway leads to a bath and two additional bedrooms. These rooms are conveniently close to the laundry room, which includes a bench and coat pegs. A storage room is also above the garage.

Plan Details

Heated Space

  • Main Floor2638 sqft

  • Sub-Total 2638 sqft

  • Bonus+ 349 sqft

  • Bsmnt (Unfin.)+ 2581 sqft

Beds and Baths

  • Bedrooms3

  • Full Baths2

  • Half Baths1

  • Floors1

Exterior Dimensions

  • Width67'-0"

  • Depth63'-0"

  • Height (to Midpt)19'-5"

  • Height (to Peak)28'-5"

Garage

  • Garage Bays3 Car Garage

  • Garage Area693 sqft

  • Garage LocationFront

  • Garage OrientationStraight-On

Structure

  • Roof FramingTruss

  • Roof Material Shake/Comp Roof
    Tile Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch10/12

This plan is based upon design - 22157A

  • Added 43 sqft to finished area

  • Overall Depth increased 1ft.

Check out the details for Plan 22157A here.
In-Ground Basement
for Plan 22157A

To order this configuration, choose 'In-Ground Basement' from available foundation options on the page for Plan 22157A
