Floor Plans

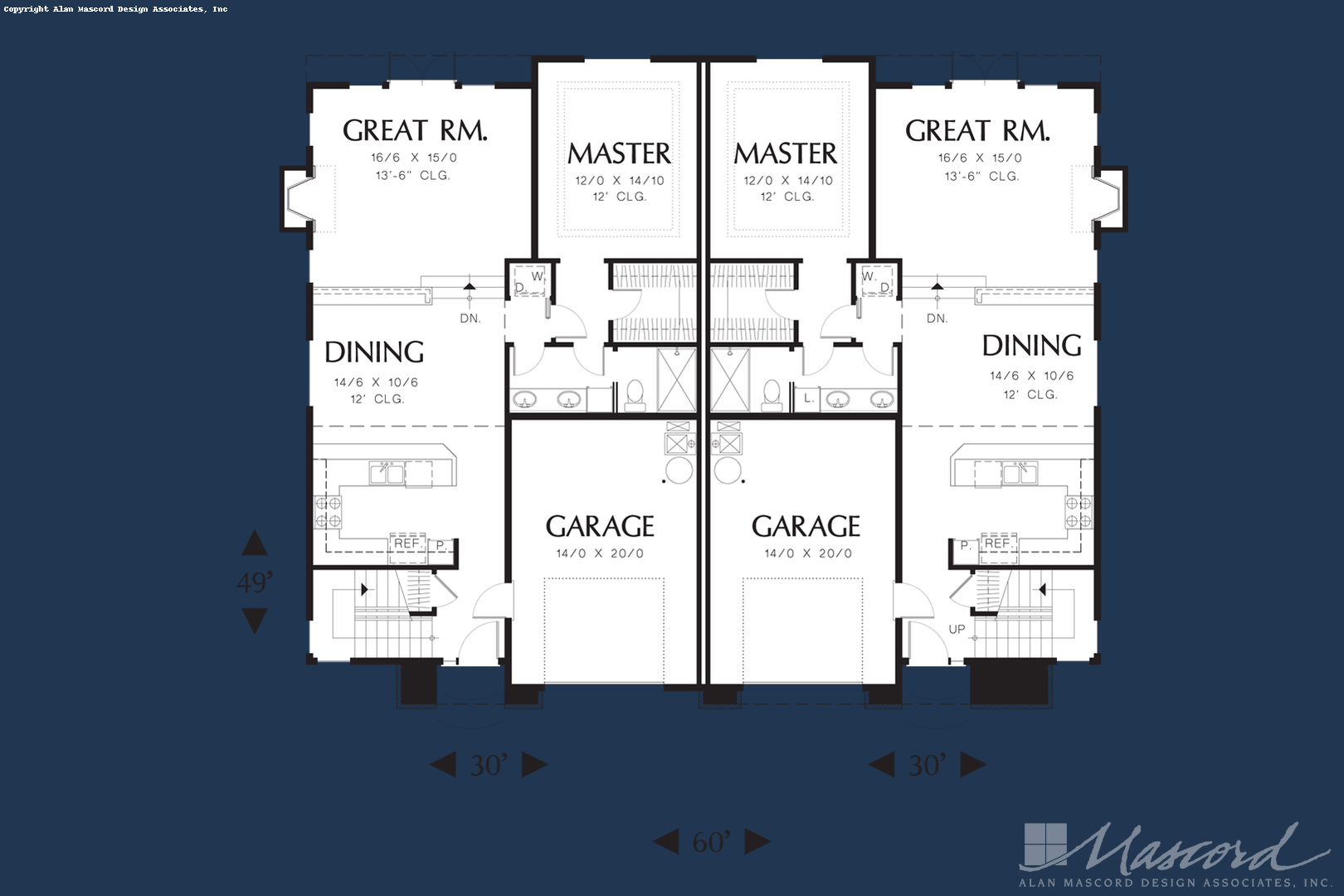

Main Floor Plan

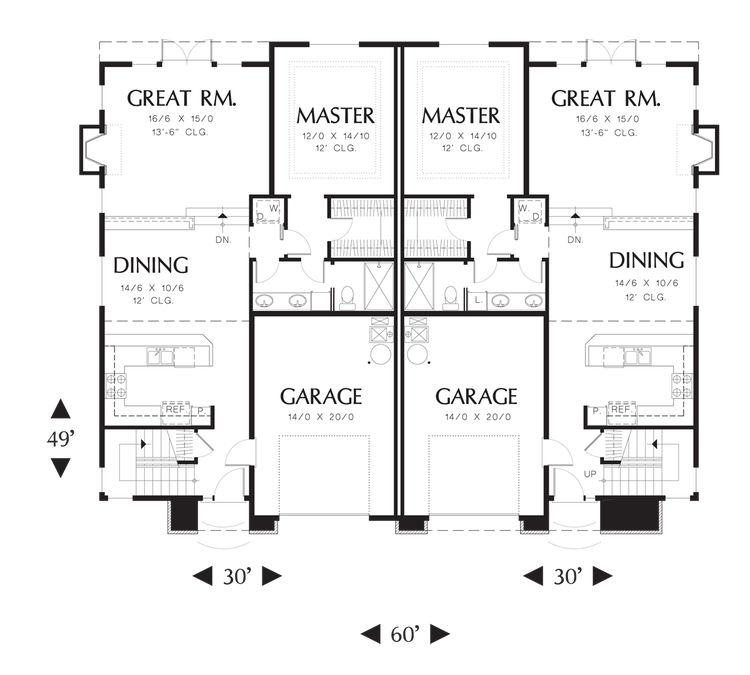

Main Floor Plan image for Mascord Sheridan-English Countryside Style Duplex-Main Floor Plan

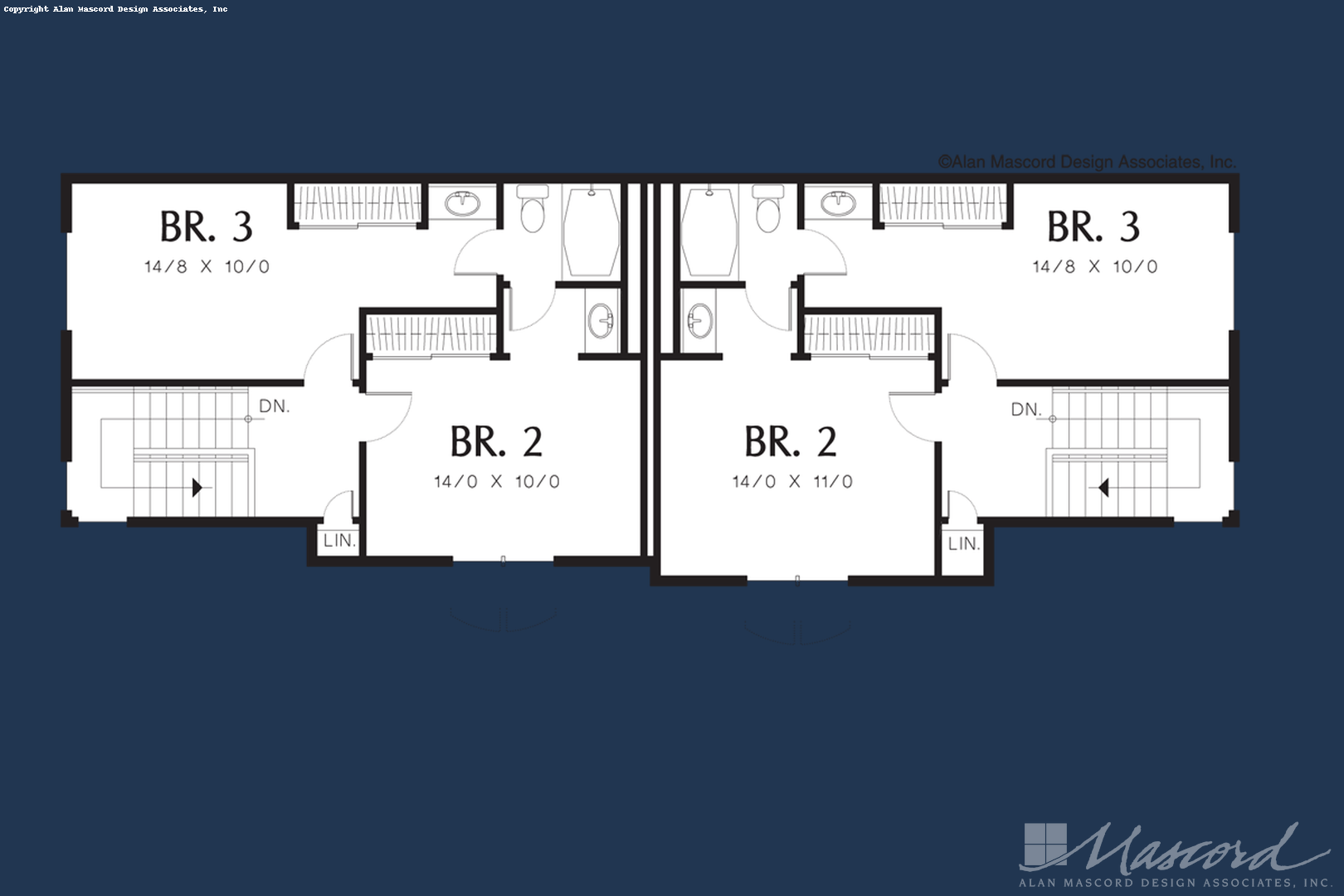

Upper Floor Plan

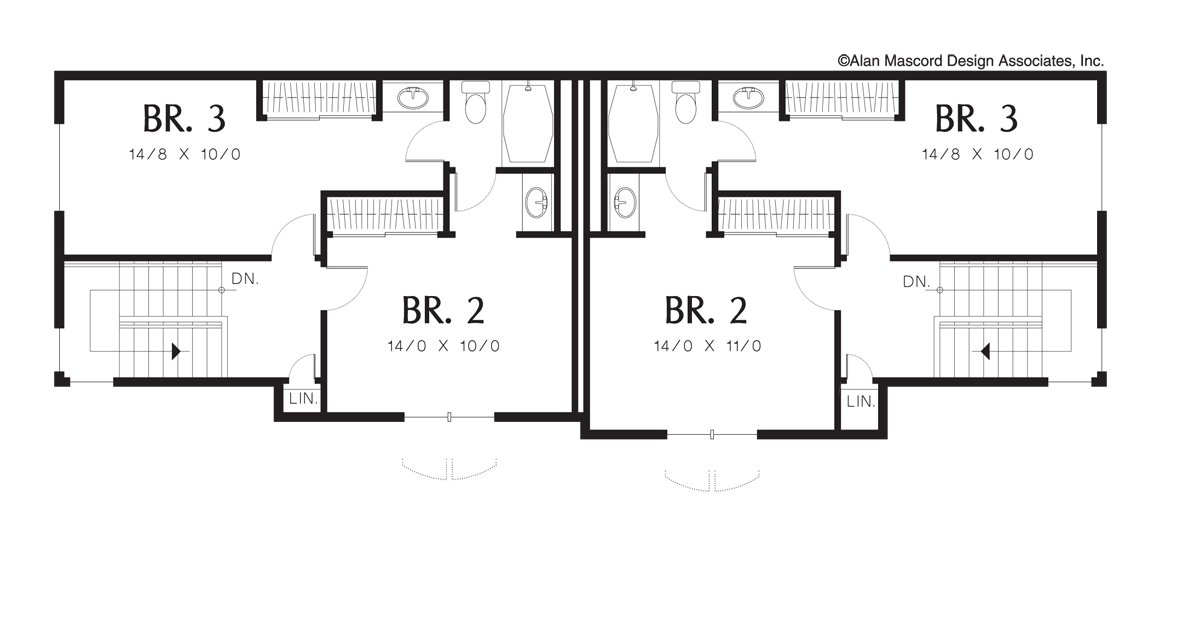

Upper Floor Plan image for Mascord Sheridan-English Countryside Style Duplex-Upper Floor Plan

A Walk Through The Sheridan

Twin peaks, filled with the flavor of the English countryside, contain nearly identical duplex units. Cedar shingles and coarse stone enhance the effect. Each side has a one-car garage to the front and opens at an arched, recessed entry. Immediately to one side of the entry is a stairway to the upper level. A U-shaped kitchen sits next to the dining room (with twelve-foot ceiling) and has a pantry and snack counter. The great room is sunken just a few steps and features a fireplace and double doors opening to the rear yard. A first-floor master suite is a convenient trend. This one has a walk-in closet, twelve-foot tray ceiling and bath with dual sinks. Space for a stackable washer/dryer is nearby. The upper level features two additional bedrooms with private lavatory areas in a shared bath.

Plan Details

Unit A

Heated Space

  • Upper Floor 494 sqft

  • Main Floor 1073 sqft

  • Total Area 1567 sqft

Amenities

  • Bedrooms3

  • Full Baths2

  • Floors2

  • Garage298 sqft

Unit B

Heated Space

  • Upper Floor512 sqft

  • Main Floor1073 sqft

  • Total Area 1585 sqft

Amenities

  • Bedrooms3

  • Full Baths2

  • Floors2

  • Garage298 sqft

Whole Structure

Heated Space

  • Upper Floor1322 sqft

  • Main Floor2146 sqft

  • Total Area 3468 sqft

Exterior Dimensions

  • Width60'-0"

  • Depth49'-0"

  • Height (to Midpt)23'-5"

  • Height (to Peak)27'-8"

Notable Features

Structure

  • Roof FramingTruss

  • Roof Material Shake/Comp Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch10/12

Order this plan

Construction Plan Set
Foundations
Additional Options

Subtotal:

$

or call to order

1 (800) 411-0231

Mon-Fri: 8am-5pm PST

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Modify This Plan

Tell us what you'd like to change, and we will prepare a quote to implement your required changes

What will it cost to build THIS house plan?

Order your custom Cost to Build Report specific to your houseplan and building lot zip code for only $30 today, and develop your construction budget before you build. Powered by StartBuild technology.

Have other questions?

If you can't find the information you need online please contact us

Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST
