• 2122 ft²
  • 3 Bed
  • 2 / 1 Bath

Floor Plans

Main Floor Plan

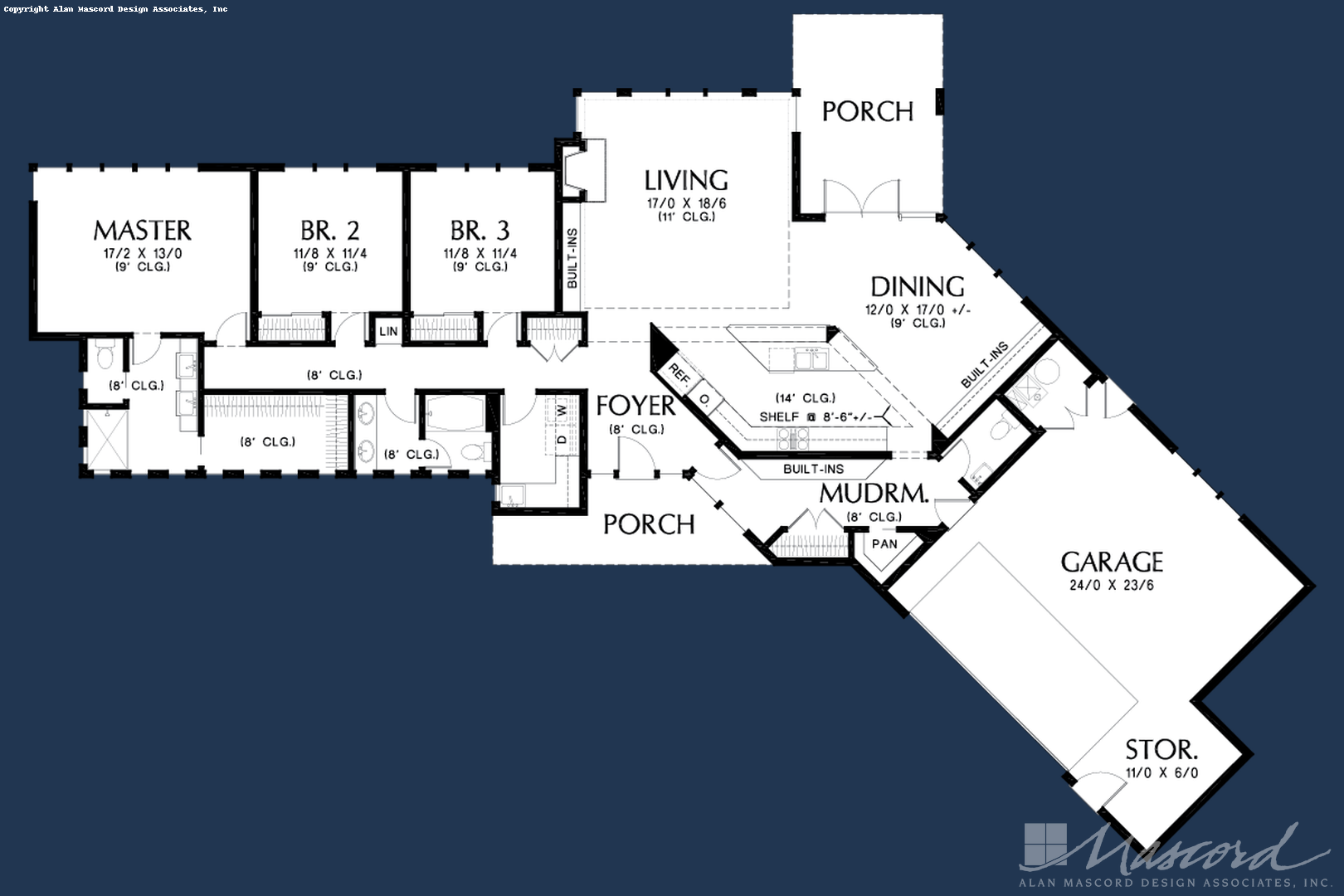

Main Floor Plan image for Mascord Cheatham-Smart Spaces, Beautiful Connection to the Outdoors-Main Floor Plan

A Walk Through The Cheatham

If you enjoy all things nature, then you’ll appreciate the Cheatham’s rich connection to the outdoors. During summer vacation, when the kids are home from school, you’ll wake up bright and early on sunny mornings just so that you can enjoy breakfast with the family on the shaded porch. The kids will be busy planning backyard adventures while you enjoy the fresh breeze and greenery.

As the weather heats up, you’ll find yourself relaxing in this home’s spacious living area. Floor to ceiling windows in the living and dining area let you gaze out at the trees behind your home. If you enjoy cooking and baking, then now might be a great time to while away the afternoon putting together treats for dinnertime. This home’s diamond-shaped kitchen is designed to let you look out through the living and dining area’s windows so that you can enjoy the view and keep an eye on the kids as you work. Between the island and the long counters, you’ll have plenty of space to multitask. Gather the kids around the island for lunch and use the remaining counter space to continue dinner preparations.

Elsewhere in the Cheatham, you’ll find practical solutions to everyday problems. The mudroom, for instance, gives the whole family a place to come in out of the weather and kick off muddy shoes. You’ll find a pantry in the mudroom, which means that when you pull your car into the garage, you are only a few steps away from being able to put away the groceries. There is also a closet for jackets and outerwear and built-in cabinets that will help you keep the necessities organized.

The wing off of the living area contains three bedrooms, a bath and a convenient laundry room. This means that you won’t need to haul heavy laundry baskets up and down stairs or to the opposite side of the home since each bedroom is only a few short steps from the laundry area.

The master suite is perhaps the most comforting spot in the house. Here, you’ll have access to a beautifully planned master bath, complete with dual sinks, a tiled shower and attached walk-in closet. The bedroom itself invites you to enjoy each season of the year through beautiful corner windows. Spring treats you to the sight of verdant greenery and in the summer, wake up to sunlight filtering through the trees and spend a while watching wildlife play in the forest. Watch leaves drift to the ground in the fall. In the winter, you’ll enjoy looking out over freshly fallen snow as you stay warm under the covers.

Plan Details

Heated Space

  • Main Floor2122 sqft

  • Total Area 2122 sqft

Beds and Baths

  • Bedrooms3

  • Full Baths2

  • Half Baths1

  • Floors1

Exterior Dimensions

  • Width102'-9"

  • Depth67'-8"

  • Height (to Midpt)13'-6"

  • Height (to Peak)17'-0"

Garage

  • Garage Bays2 Car Garage

  • Garage Area703 sqft

  • Garage LocationFront

  • Garage OrientationAngled

Structure

  • Roof FramingTruss

  • Roof Material Shake/Comp Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch4/12
