Plan 2192 - The Meredith - Narrow Craftsman Plan with Vaulted Ceilings
Floor Plans

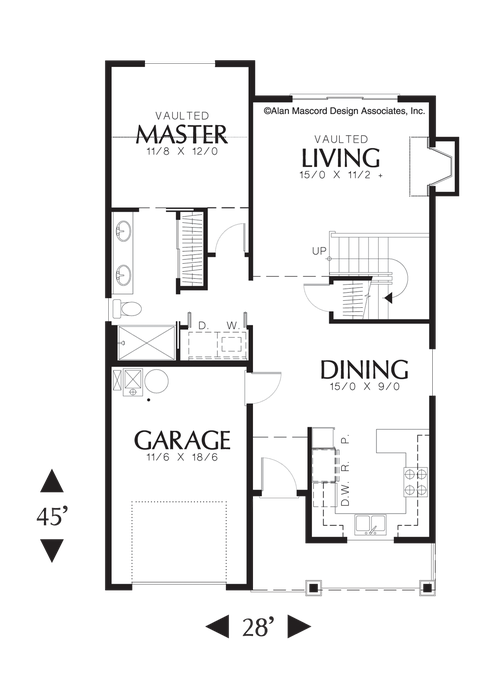

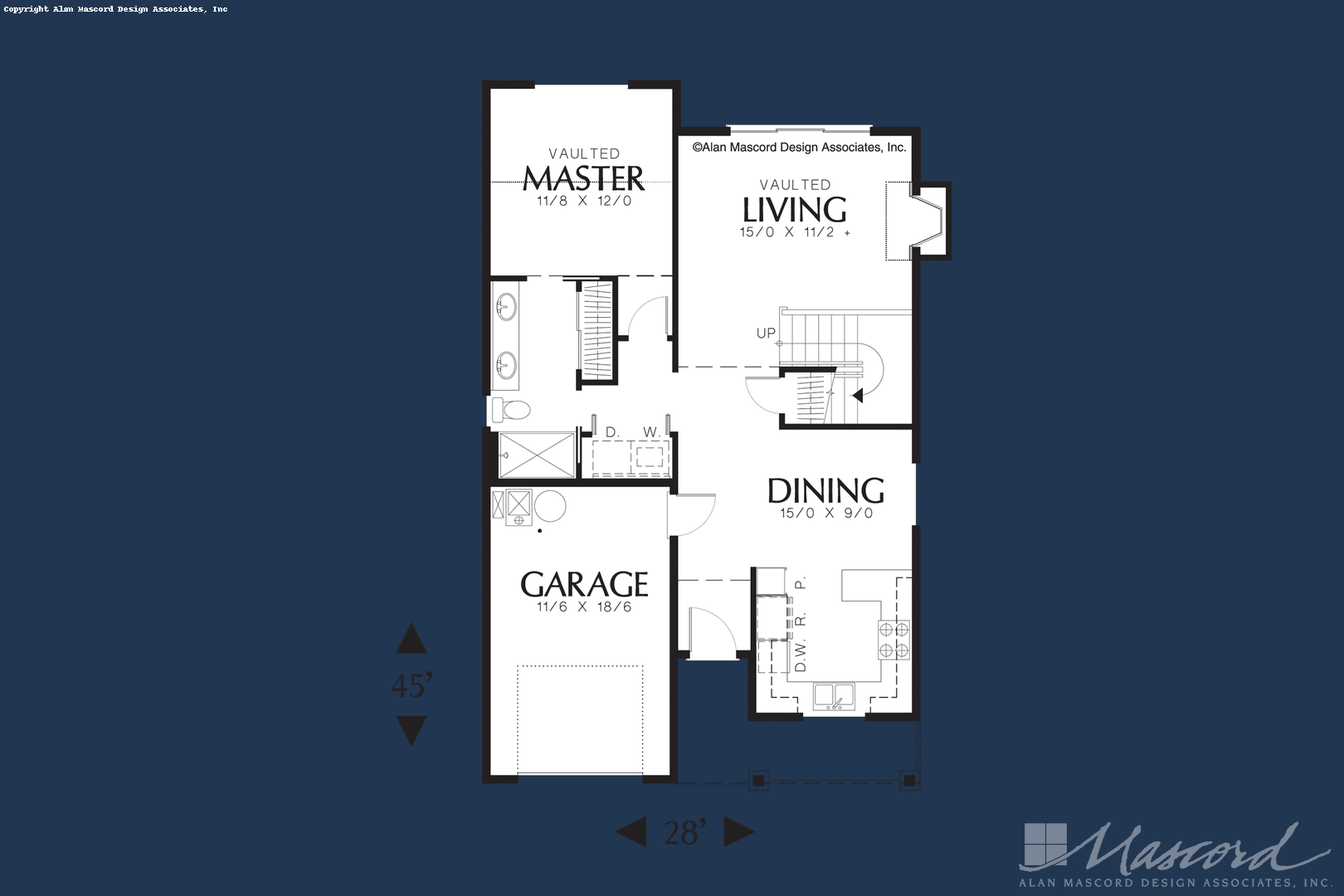

Main Floor Plan

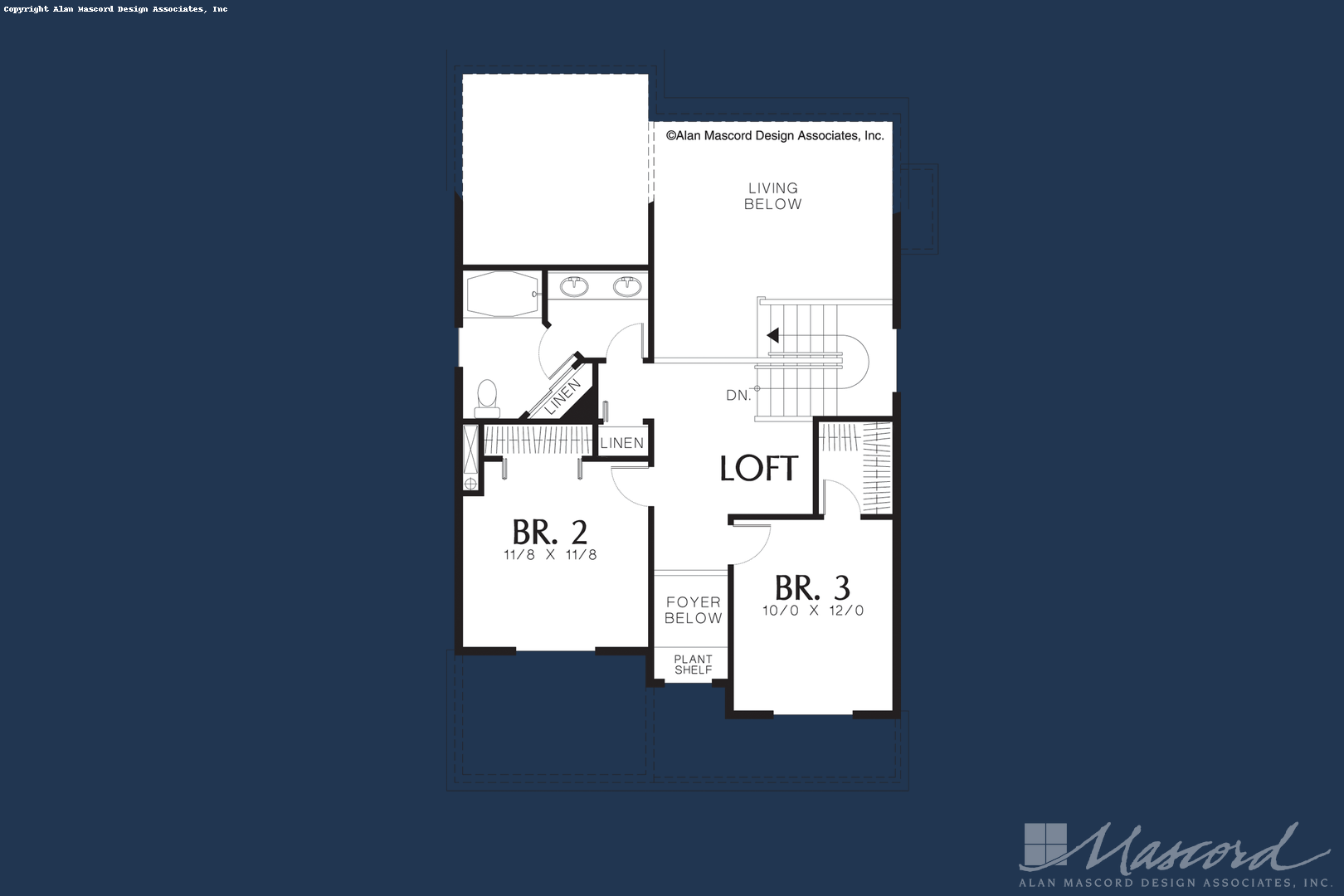

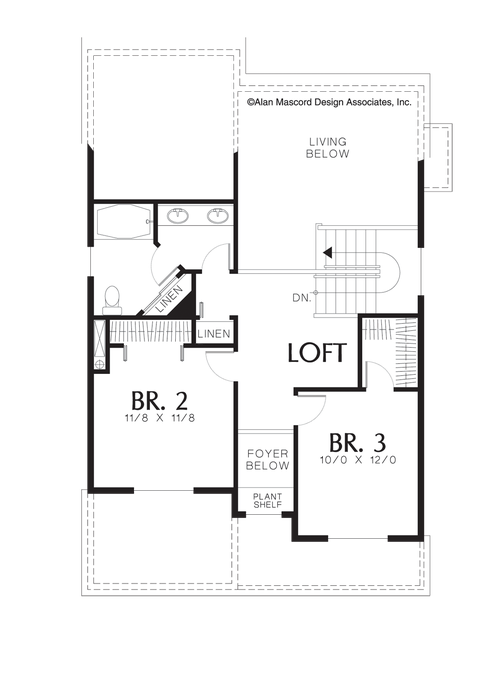

Upper Floor Plan
A Walk Through The Meredith
Just because you need a design with a narrow width, you don't have to sacrifice great living space to have it. This design features a beautiful facade and a comfortable floor plan, yet is only 28 feet wide. Exterior virtues include a covered porch, cedar shake detailing, shuttered windows and horizontal wood siding. On the inside, the plan boasts vaulted ceilings in the living room and master salon. The living room also has a fireplace and sliding glass doors to the backyard. The master bath can be accessed either from the master bedroom, or from a hall that also contains a laundry alcove. The dining area and kitchen are to the front of the plan. Two family bedrooms - one with a walk-in closet - are upstairs. Their shared bath has a corner linen closet, a double vanity and a compartmented toilet and tub. The second-floor loft overlooks the living room and the foyer below.
Plan Details
Heated Space
Upper Floor586 sqft
Main Floor902 sqft
Total Area 1488 sqft
Beds and Baths
Bedrooms3
Full Baths2
Floors2
Exterior Dimensions
Width28'-0"
Depth45'-0"
Height (to Midpt)21'-6"
Height (to Peak)25'-8"
Garage
Garage Bays1 Car Garage
Garage Area232 sqft
Garage LocationFront
Garage OrientationStraight-On
Notable Features
Structure
Roof FramingCombo
Roof Material Shake/Comp Roof
Snowload25 lb/sf
Wall Framing2 x 6
Main Roof Pitch8/12
