• 3048 ft²
  • 5 Bed
  • 3 Bath

Floor Plans

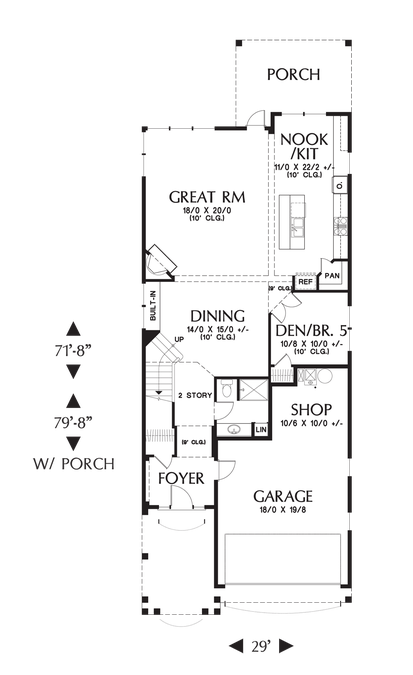

Main Floor Plan

Main Floor Plan image for Mascord Laurelhurst-Large Plan for Narrow Lots Full of Character-Main Floor Plan

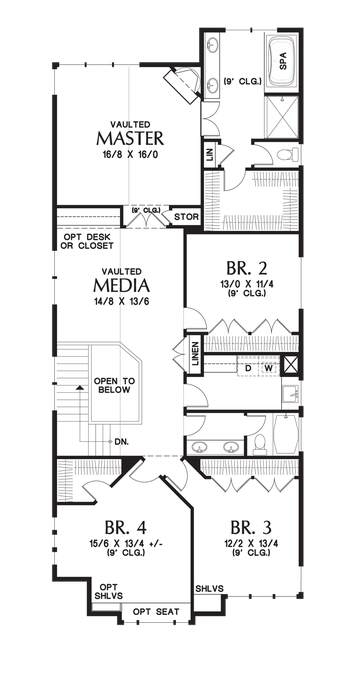

Upper Floor Plan

Upper Floor Plan image for Mascord Laurelhurst-Large Plan for Narrow Lots Full of Character-Upper Floor Plan

A Walk Through The Laurelhurst

It's unusual to find such a large plan specifically designed for narrow lots, but the Laurelhurst accomplishes it wonderfully. Transitional space is beautifully and practically minimized, making the space all the more valuable. A large covered front porch greets visitors and welcomes them into an ample foyer with outdoor coat and shoe storage closet. The large open floor plan layout includes a great room, kitchen with island and nook, and a formal dining room. A den, office, or guest bedroom, downstairs bathroom and large workshop complete the main floor.

Moving upstairs, the open staircase leads to a vaulted media loft, which houses space for a workstation desk or media closet. The master suite features a large vaulted bedroom with fireplace, bathroom with dual vanities, separated shower and spa tub, private water closet and large walk-in closet. Three additional bedrooms with ample closet space (one with walk in closet and seating or desk space) offer room for larger or growing families.

Plan Details

Heated Space

  • Upper Floor1766 sqft

  • Main Floor1282 sqft

  • Total Area 3048 sqft

Beds and Baths

  • Bedrooms5

  • Full Baths3

  • Floors2

Exterior Dimensions

  • Width29'-0"

  • Depth79'-8"

  • Height (to Midpt)26'-1"

  • Height (to Peak)31'-11"

Garage

  • Garage Bays2 Car Garage

  • Garage Area486 sqft

  • Garage LocationFront

  • Garage OrientationStraight-On

Structure

  • Roof FramingTruss

  • Roof Material Shake/Comp Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch9/12
