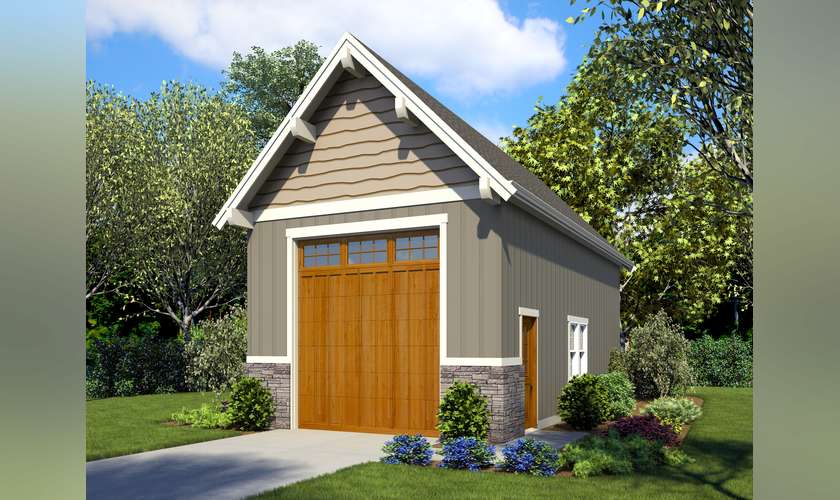

Plan 5037 - The Brands Hatch - Need space for an RV? This garage plan has you covered
Floor Plans

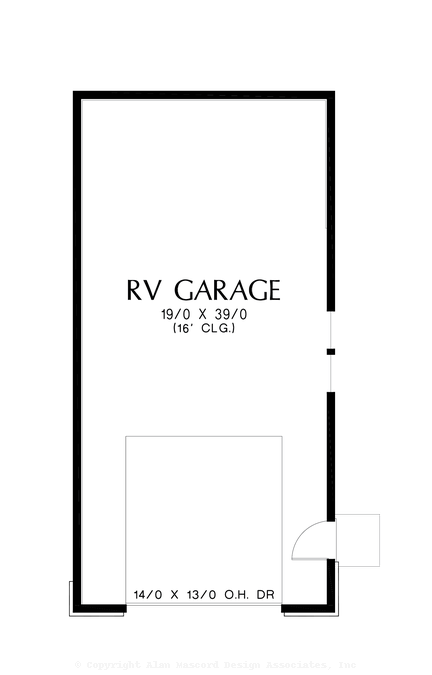

Main Floor Plan
Plan Details
Beds and Baths
Floors1
Exterior Dimensions
Width20'-0"
Depth40'-0"
Height (to Midpt)22'-0"
Height (to Peak)26'-10"
Garage
Garage Bays1 Car Garage
Garage Area800 sqft
Garage LocationFront
Garage OrientationStraight-On
Notable Features
Structure
Roof FramingTruss
Roof Material Shake/Comp Roof
Snowload25 lb/sf
Wall Framing2 x 6
Main Roof Pitch12/12
