Plan 22148 - The Sentinel - French Cottage with Open Kitchen and Great Room
Floor Plans

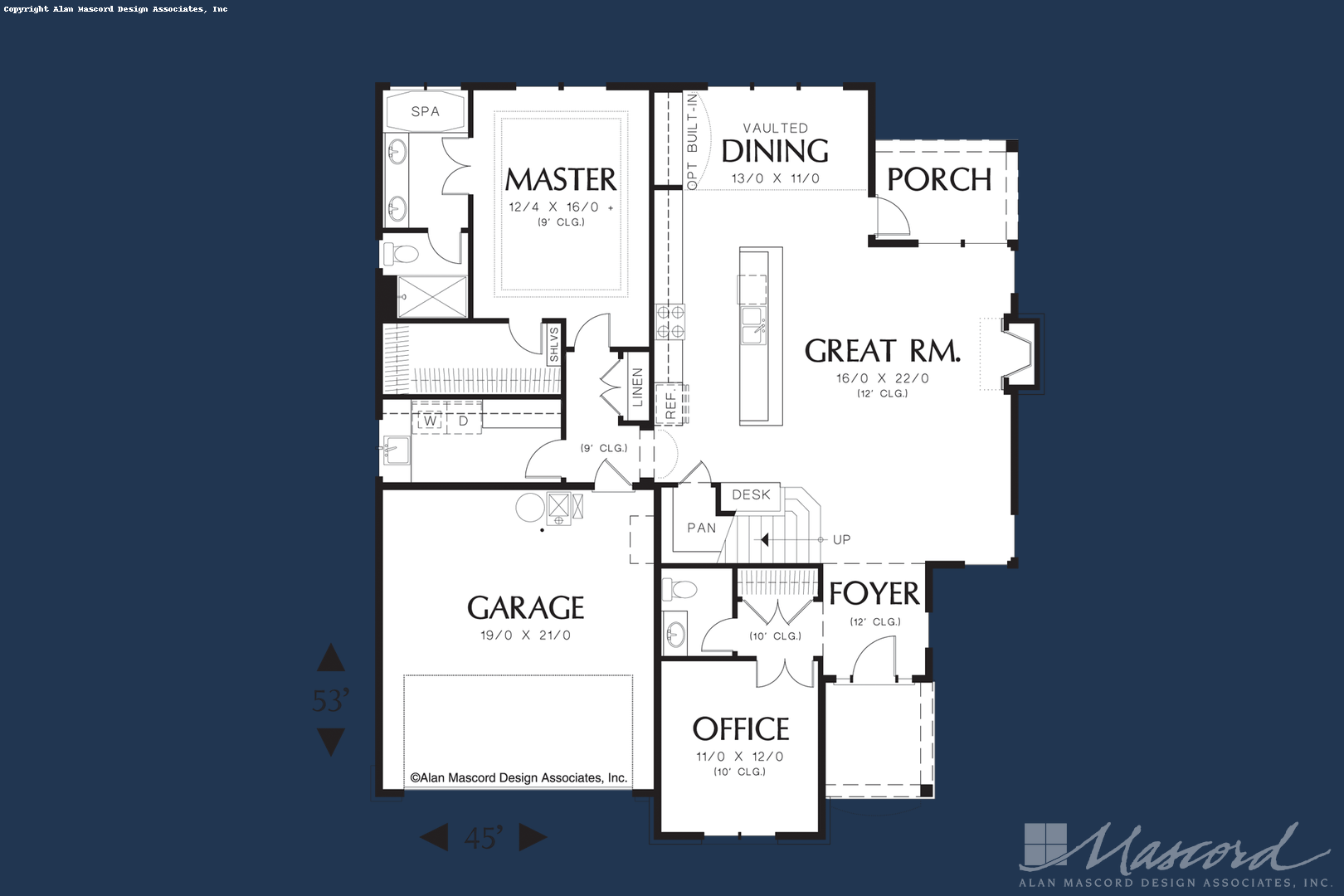

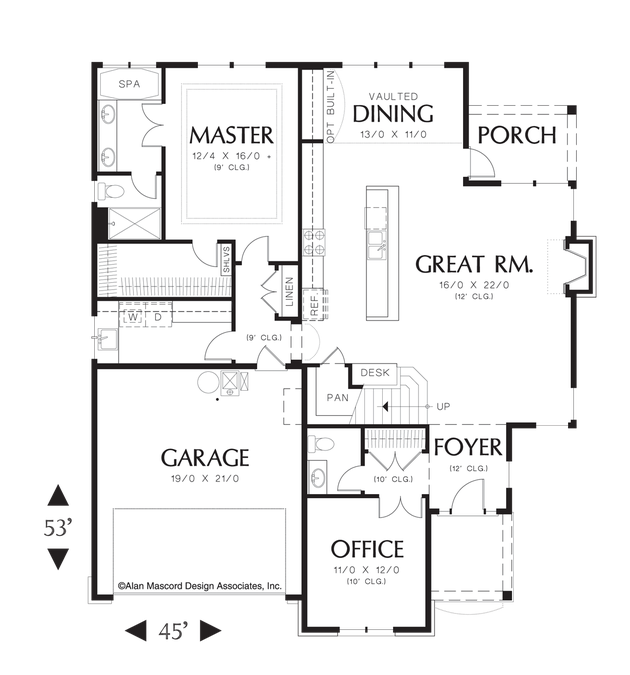

Main Floor Plan

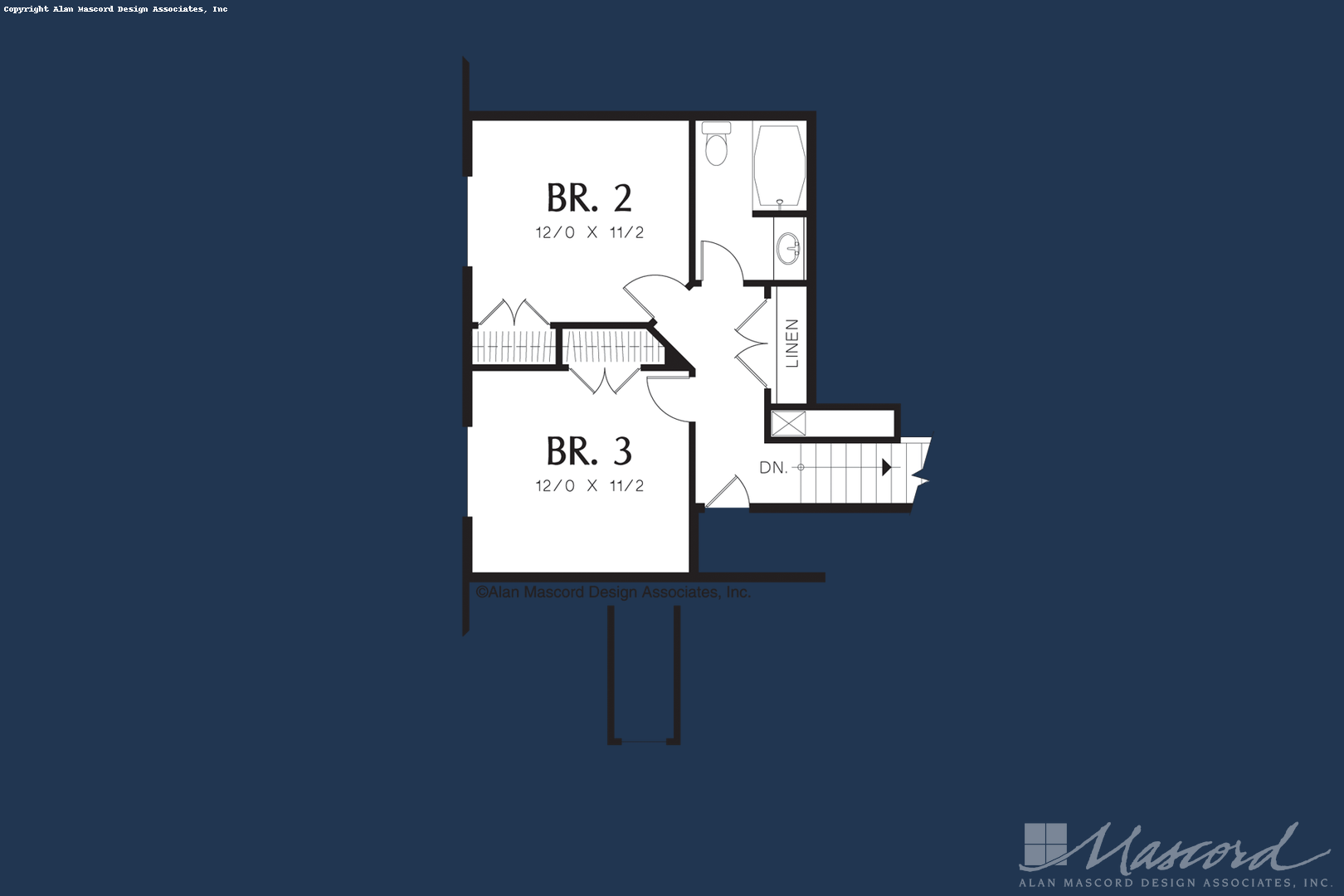

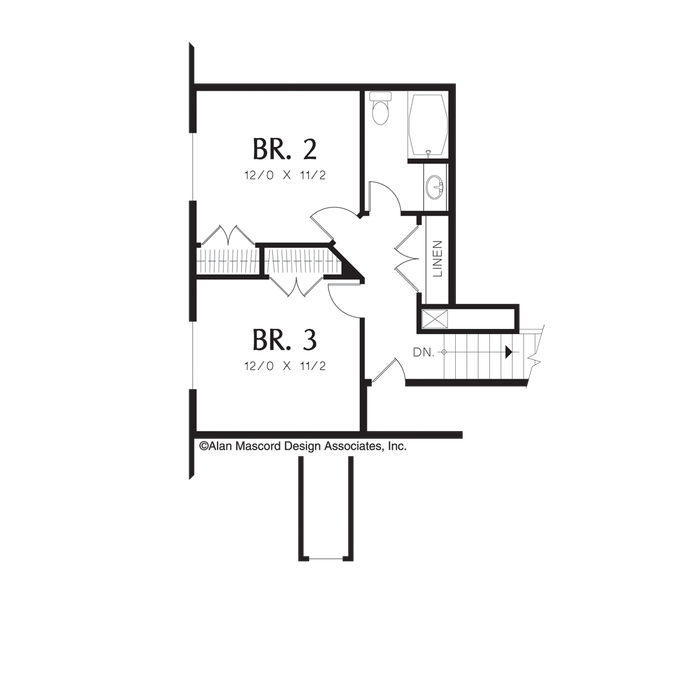

Upper Floor Plan
A Walk Through The Sentinel
Massive, multi-paned windows, double gables and a charming dormer combine with subtle details such as an arched, columned entry, slatted shutters and a decorative attic vent in this lovely two-story traditional home. The floor plan is classically devised, but also incorporates current design to make a layout that is timeless and convenient. A home office opens through double doors from a hallway to the left of the foyer, where there is also a half-bath and closet. Optional built-ins in the office make the best use of space. The great room is sizable and has a twelve-foot ceiling and gas fireplace. A bar counter separates the great room from the kitchen; a vaulted dining area with optional built-in hutch is nearby and has access to a side porch and patio. Take a short hall from the great room past a laundry room and linen closet to reach the master suite. A tray ceiling graces the salon, further complemented by a walk-in closet and bath with spa tub and separate shower. Two additional bedrooms are found on the upper level and share the use of a full hall bath.
Plan Details
Heated Space
Upper Floor479 sqft
Main Floor1601 sqft
Total Area 2080 sqft
Beds and Baths
Bedrooms3
Full Baths2
Half Baths1
Floors2
Exterior Dimensions
Width45'-0"
Depth53'-0"
Height (to Peak)28'-5"
Garage
Garage Bays2 Car Garage
Garage Area419 sqft
Garage LocationFront
Garage OrientationStraight-On
Notable Features
Structure
Roof FramingTruss
Roof Material Shake/Comp Roof
Tile RoofSnowload25 lb/sf
Wall Framing2 x 6
Main Roof Pitch9/12
