• 2286 ft²
  • 3 Bed
  • 2 / 1 Bath

Floor Plans

Main Floor Plan

Main Floor Plan image for Mascord Waverly-Foursquare Family Home with Flexible Spaces-Main Floor Plan

Upper Floor Plan

Upper Floor Plan image for Mascord Waverly-Foursquare Family Home with Flexible Spaces-Upper Floor Plan

Upper Floor Plan

Upper Floor Plan image for Mascord Waverly-Foursquare Family Home with Flexible Spaces-Upper Floor Plan

A Walk Through The Waverly

The Waverly is a rich, traditional home designed to ensure the comfort of your family. Think of all the memories that you will make here. Thanksgiving feasts, for instance, held in the dining area where you and your family can look out at the last of the fall leaves. Once the meal is done, you’ll spend quiet hours in the living room, gathered around the fireplace, sipping hot cider with your family.

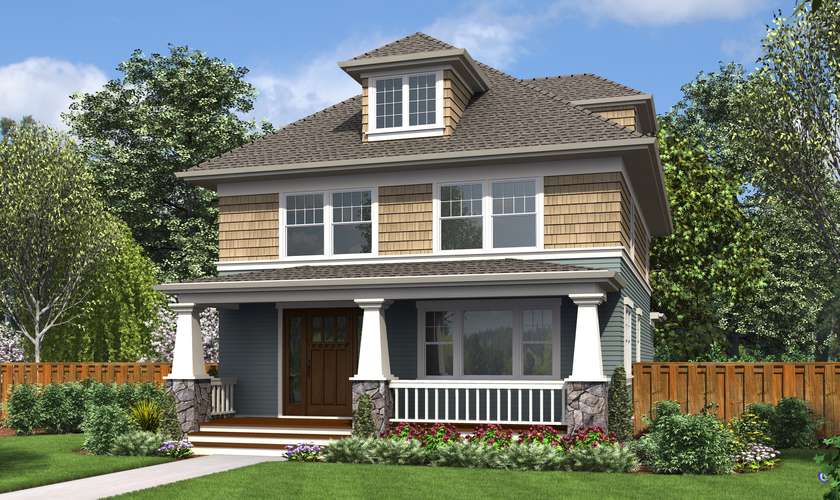

Decorating comes after Thanksgiving, and you’ll make many wonderful memories putting up the Christmas tree in the living room and decorating the adorable front porch with lights and garlanding. Perhaps you could send the kids out into the wooded lots around your home in search of pinecones to make decorations!

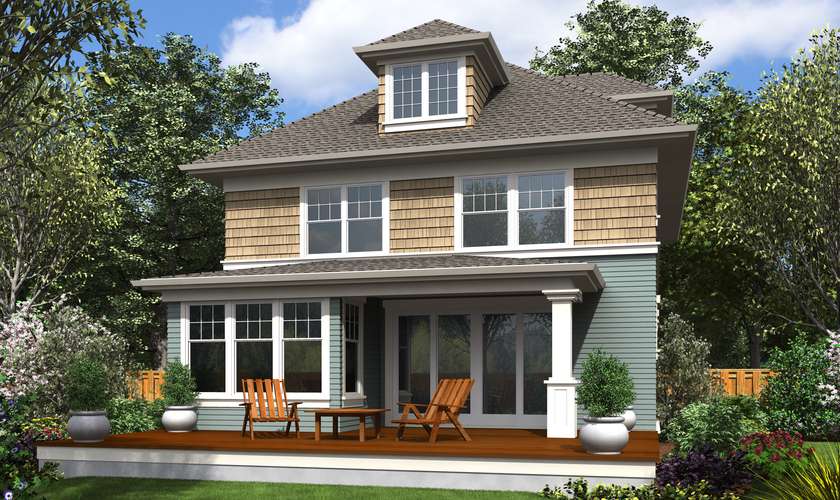

The back porch is a spot to play and entertain all throughout the spring, summer and fall. During the day, this will be the starting point for your children’s adventures out into the woods. In the evenings, you’ll want to invite the neighbors over. Have a barbecue, serve some drinks, and watch the little ones catch fireflies in the back yard.

The Waverly has a practical side, too. For instance, the office gives you options for built-in cabinets or desk space as well as bookshelves. This is exactly the kind of space you’ll need if you plan to telecommute.

You’ll enjoy the conveniently located laundry room just off of the kitchen. You’ve got space for the washer and dryer, counters for folding laundry, and there is a walk-in pantry, which helps you keep dry goods organized and close to the kitchen, where you need them most.

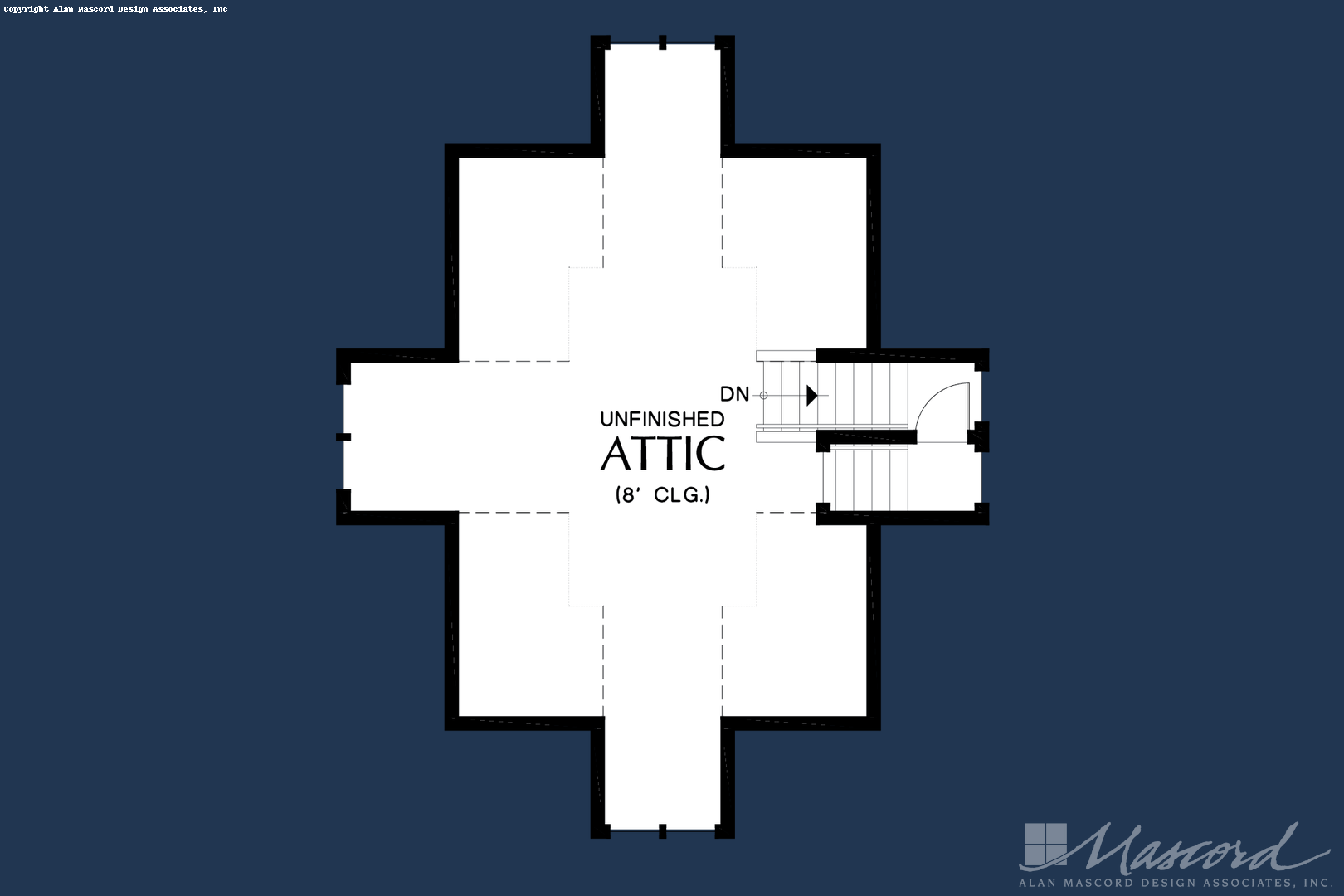

Finally, there is the upper floor, with two bedrooms and a master suite, plus a set of stairs leading up to a roomy third story attic. These bedrooms are where the kids will spend their younger years hosting sleepovers, building blanket forts with their friends and in general having a great time. Closet space in each room helps you keep the kids organized.

After long, busy days, you need a special place to unwind, and in this home, that is the master suite. Curl up in an armchair and spend the evening hours reading in peace, or simply enjoy the starry view through the picture window. If it has been a particularly tough day, then you deserve a warm soak in the master bath’s tub. When you are finally ready to call it a day, crawl under the covers and drift off to sleep to the sight of the night sky.

Plan Details

Heated Space

  • Upper Floor1072 sqft

  • Main Floor1214 sqft

  • Total Area 2286 sqft

Beds and Baths

  • Bedrooms3

  • Full Baths2

  • Half Baths1

  • Floors2

Exterior Dimensions

  • Width30'-0"

  • Depth51'-9"

  • Height (to Midpt)29'-2"

  • Height (to Peak)31'-3"


  • Garage BaysNo Garage

  • Garage LocationNone

  • Garage OrientationNone


  • Roof FramingStick

  • Roof Material Shake/Comp Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch9/12

  • Additional Code Compliance City of Portland

Order this plan

Construction Plan Set
Additional Options



or call to order

1 (800) 411-0231

Mon-Fri: 8am-5pm PST

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Modify This Plan

Tell us what you'd like to change, and we will prepare a quote to implement your required changes

What will it cost to build THIS house plan?

Order your custom Cost to Build Report specific to your houseplan and building lot zip code for only $30 today, and develop your construction budget before you build. Powered by StartBuild technology.

Have other questions?

If you can't find the information you need online please contact us

Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST


The Mascord collection of craftsman house plans highlight features that were first introduced with the Arts and Crafts movement, which thrived from 1876-1915, and continues to be celebrated today. These homes have great curb appeal, lots of detail and the amenities you need for modern living. Check out the collection for more great home designs.

Neighborhood Design

Plans in our Traditional Neighborhood Design collection emphasize people-friendly features and development of community.  If that sounds like you, you should definitely check out these designs and make sure you're building in a development that suits your lifestyle. The houses are traditional in style, and many contain front porches and garages located at the rear of the home so they are perfect for you.


Traditional homes freely borrow from a number of historic styles and combine them to relay a new expression. Many historic styles are also 'traditional' in nature, and are incorporated into the Mascord Collection. Colonial, Tudor, Craftsman, Cape Cod - in this collection of home plans you'll discover floor plans that reflect modern lifestyles with spacious rooms, flexible spaces and modern conveniences, but mixed with distinct architectural flair, curb appeal and modern aesthetic. Expect elements such as free-flowing kitchens, breakfast nooks, and family room combinations.

Similar & Related Plans

You can find this plan in these related styles and collections

Builders known to be experienced constructing this home include:

Horizon NW Construction Tigard, OR 5036845678
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
