• 2587 ft²
  • 3 Bed
  • 2 / 1 Bath

Floor Plans

These images may include the non-basement version for reference

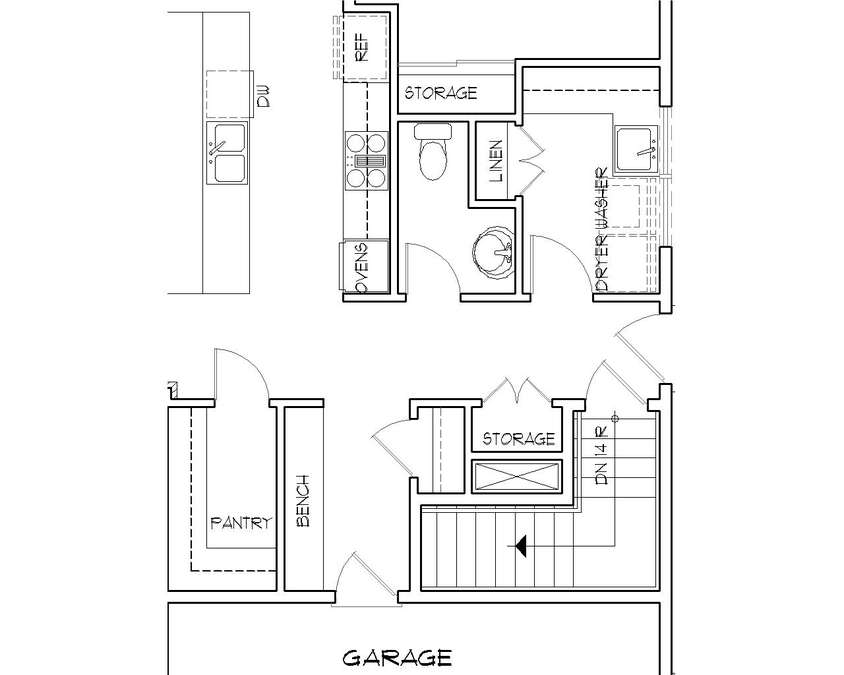

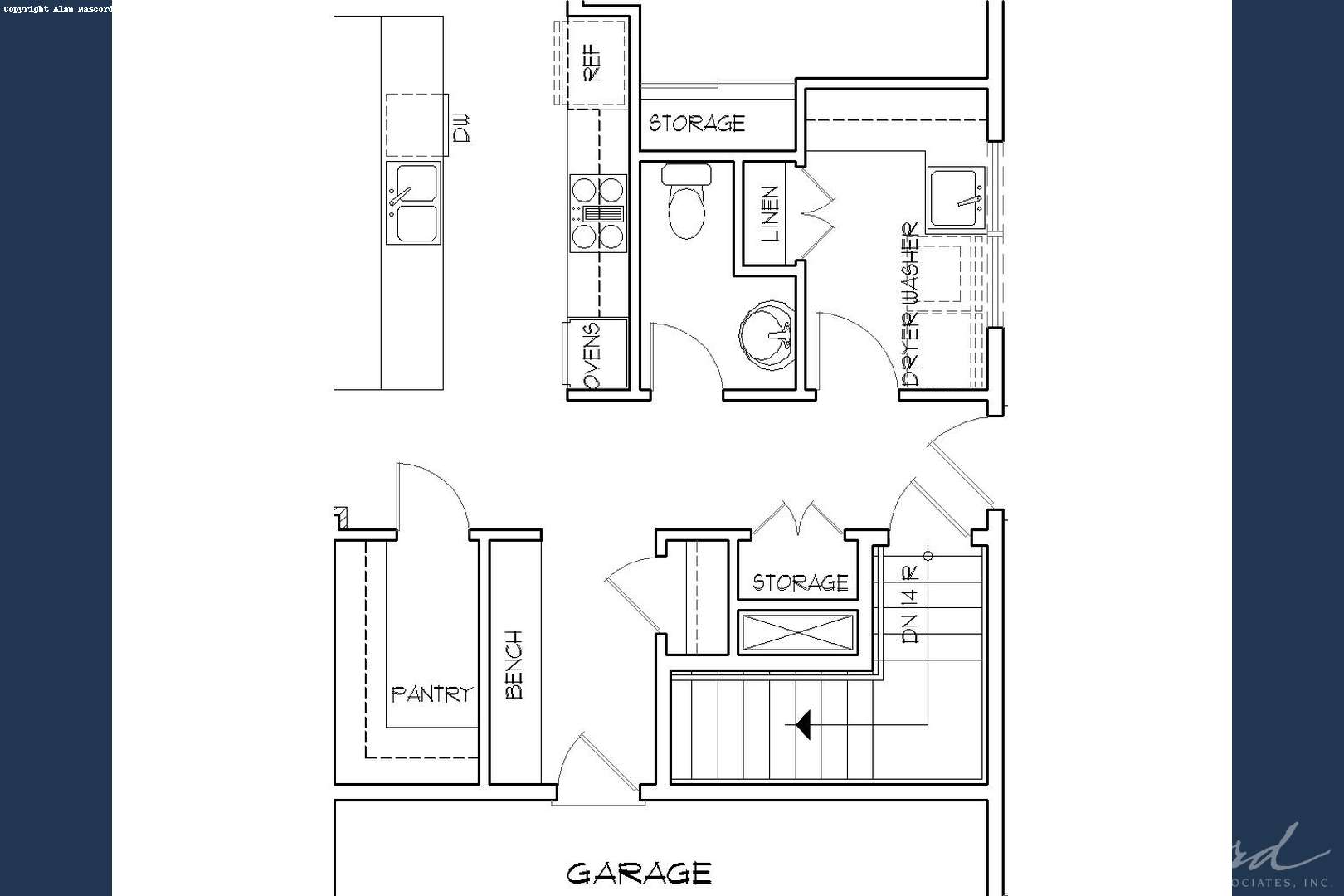

Basement Stair Location

Basement Stair Location image for Mascord --Basement Stair Location

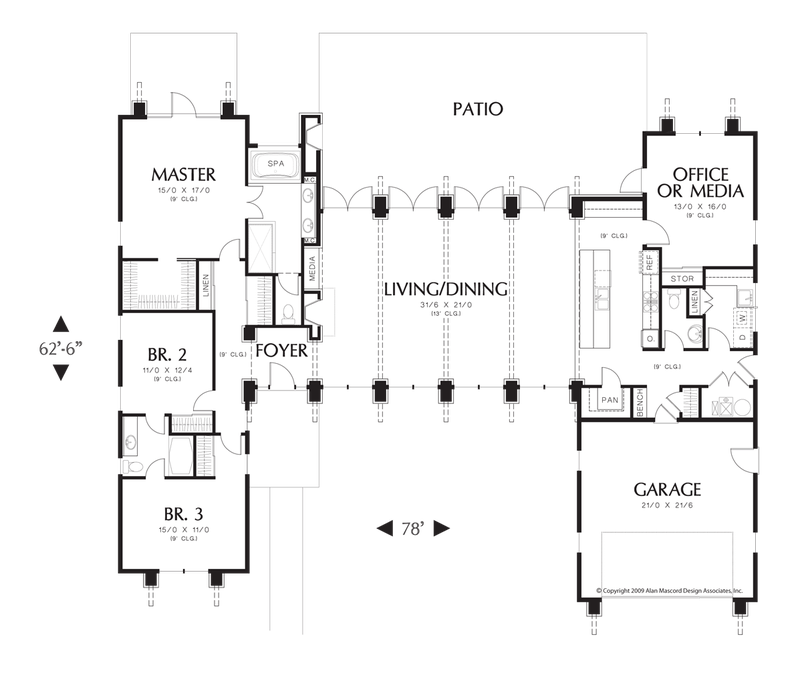

Main Floor Plan

Main Floor Plan image for Mascord --Main Floor Plan

Images

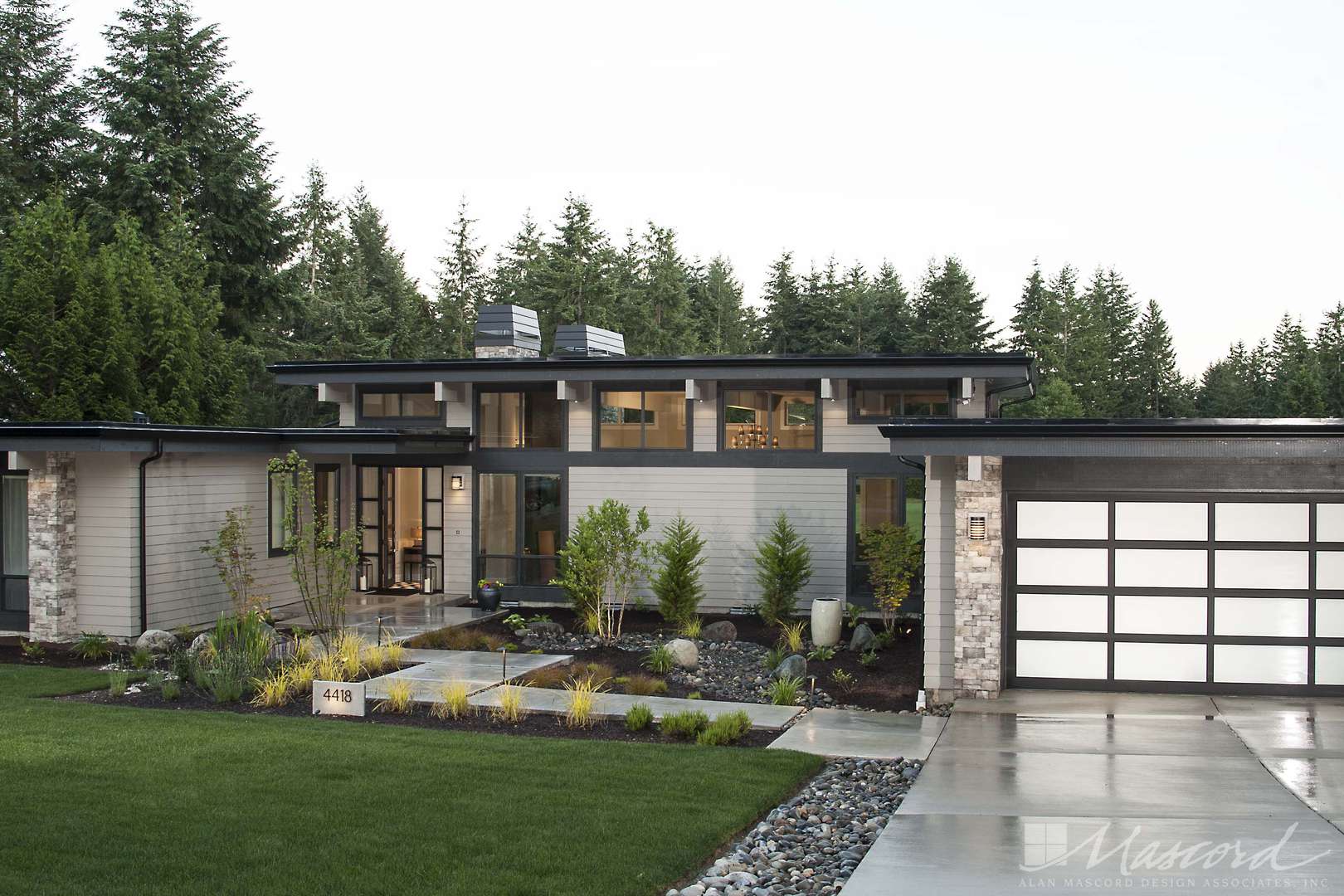

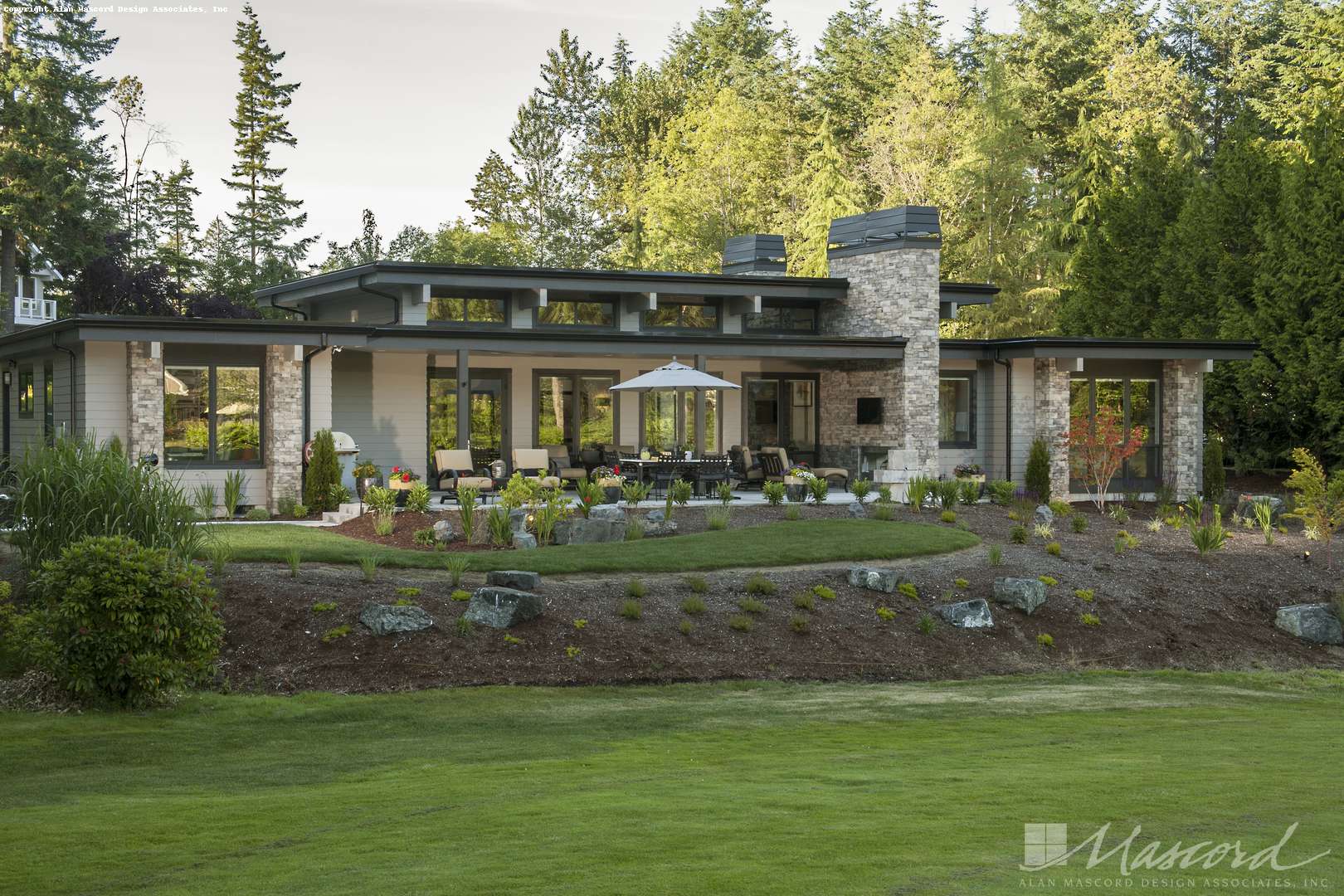

Photographed Homes May Include Modifications Not Reflected in the Design

Which part of this home catches your eye first? Is it the beautiful front courtyard, planted with your favorite woodland natives? Or is it the seamless way that the stone and natural wood exterior elements blend with the forest surrounding your home? Either way, we think that you’ll agree: The Hampton is designed to be your very own backcountry paradise. No matter where you are, inside or outdoors, you’ll be at one with nature.

Nowhere is this theme more true than in the open living and dining area. A wall of windows to the front of the room lets you gaze out over the courtyard, while doors to the outdoor living space gives you a way to escape into the woods any time you want. Once the autumn leaves start to fall, you can continue enjoying the wilderness from the warmth and comfort of your home — just light a fire in the living area’s fireplace and enjoy nature’s finest display.

Even in the home office, a space that you’d think would be devoted to technology, you’ll still be able to bask in the delights of your woodland setting. Windows overlooking your backyard let the dappled sunlight in. When you’re ready to take your lunch break, sneak out through the office’s door to the patio and enjoy a light meal while you listen to the birds twittering in the trees around your home.

The Hampton’s amenities only serve to make your already blissful life even easier. For instance, the large kitchen pantry is only a few steps from the garage, which makes for a short trip between the car and a place to put those heavy bags of groceries. Just down the hall from the kitchen is a large laundry room, complete with counter space for sorting and folding clothes. And, in between the kitchen and garage is a compact mud room that gives you storage for coats and shoes as well as a great place to confine the mess that you and your family will track in from your woodland adventures.

At the other end of the home, in the master suite, you’ll spend endless hours resting and relaxing. The spa tub in the master bathroom will be your own private oasis, just like a hot spring that you’d find at an exotic mountain resort. And, with a doorway to the master bedroom’s own private patio, you can nip outside to watch the stars or go for a moonlit stroll without disturbing your sleeping family.

Plan Details

Heated Space

  • Main Floor2587 sqft

  • Total Area 2587 sqft

  • Bsmnt (Unfin.)+ 2448 sqft

Beds and Baths

  • Bedrooms3

  • Full Baths2

  • Half Baths1

  • Floors1

Exterior Dimensions

  • Width78'-0"

  • Depth66'-8"

  • Height (to Midpt)14'-6"

  • Height (to Peak)14'-10"

Garage

  • Garage Bays2 Car Garage

  • Garage Area484 sqft

  • Garage LocationFront

  • Garage OrientationStraight-On

Structure

  • Roof FramingStick

  • Roof Material Waterproof Membrane Roofing

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch1/12

This plan is based upon design - 1240

  • Added 30 sqft to finished area

  • Overall Depth increased 4ft.

Check out the details for Plan 1240 here.
In-Ground Basement
for Plan 1240

To order this configuration, choose 'In-Ground Basement' from available foundation options on the page for Plan 1240

Have other questions?

If you can't find the information you need online please contact us

Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST

Contemporary

Our Contemporary House Plans collection presents modern homes designed around light and space: open, airy and with an abundance of windows in various modern styles, these homes are generously appointed to bring ample light indoors. Unique rooflines and asymmetrical designs create rooms that feel as grand as they are innovative. With a focus on maximizing square footage and minimizing costs, these pioneering modern homes are as reasonable to build as they are pleasant to live in, which we're sure you'll love.

Similar & Related Plans

You can find this plan in these related styles and collections

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
