• 1641 ft²
  • 3 Bed
  • 2 Bath

Floor Plans

Main Floor Plan

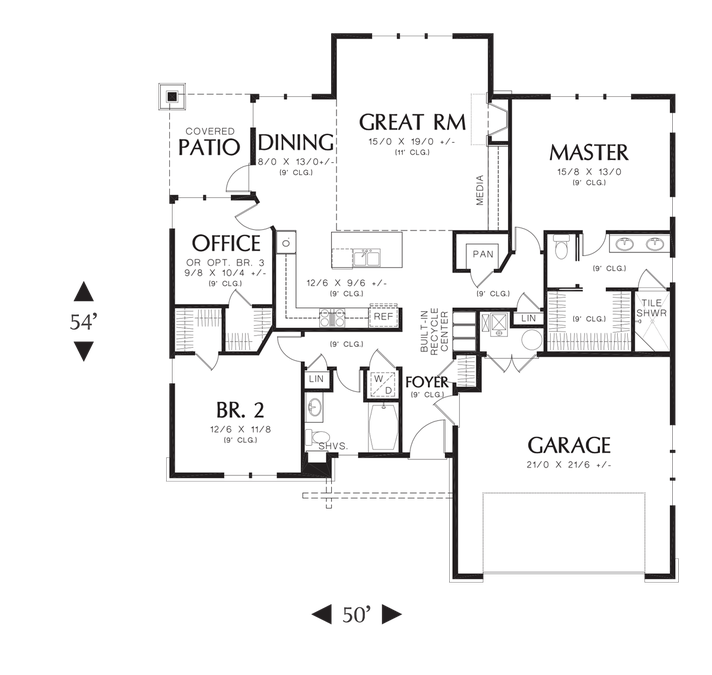

Main Floor Plan image for Mascord Pasadena-Wonderful compact Craftsman Ranch-Main Floor Plan

A Walk Through The Pasadena

As a home that combines traditional beauty with simplicity of design, the Pasadena home is a wonderful escape from overly modern or complex houses. This Craftsman home plan exemplifies artistic components of the Arts and Crafts movement (19th century England), meaning that there is an emphasis on using natural materials, such as hand-crafted stone or woodwork, throughout the design of the home. It features three bedrooms, two full bathrooms, a good amount of storage space, and other fantastic home characteristics.

The casual and relaxed atmosphere of this craftsman style home can be sensed immediately upon entering the home. Once inside, you are greeted by the foyer and beyond that the spacious kitchen which is equipped with a walk-in pantry and built-in recycle center. The kitchen is interconnected with both the great room and dining room. The open floor plan for this area unifies and brings together members of the household as well as serves as a great space for gatherings with family and friends. The dining room opens out to the covered patio for when you want to enjoy your meals and festivities outdoors.

The two main bedrooms are located on either end of the house, one to the left of the entryway, one to the right of the great room, and both have an adjoining bathroom and lots of closet space. There is also a third bedroom which can serve as an office or den and has its own closet space as well. The two car garage is perfect for storage as well.

Plan Details

Heated Space

  • Main Floor1641 sqft

  • Total Area 1641 sqft

Beds and Baths

  • Bedrooms3

  • Full Baths2

  • Floors1

Exterior Dimensions

  • Width50'-0"

  • Depth54'-0"

  • Height (to Midpt)14'-4"

  • Height (to Peak)20'-0"

Garage

  • Garage Bays2 Car Garage

  • Garage Area471 sqft

  • Garage LocationFront

  • Garage OrientationStraight-On

Structure

  • Roof FramingTruss

  • Roof Material Shake/Comp Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch7/12

This plan is based upon design - 1168ES-West Coast Home Solutions 3

  • Added 134 sqft to finished area

  • Overall Width increased 13ft.

  • Overall Depth decreased 5ft.

Check out the details for Plan 1168ES-West Coast Home Solutions 3 here.

Order this plan

Construction Plan Set
Foundations(View In-Ground Basement Details)
Additional Options

Subtotal:

$

or call to order

1 (800) 411-0231

Mon-Fri: 8am-5pm PST

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Modify This Plan

Tell us what you'd like to change, and we will prepare a quote to implement your required changes

What will it cost to build THIS house plan?

Order your custom Cost to Build Report specific to your houseplan and building lot zip code for only $30 today, and develop your construction budget before you build. Powered by StartBuild technology.

Have other questions?

If you can't find the information you need online please contact us

Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST

Craftsman

The Mascord collection of craftsman house plans highlight features that were first introduced with the Arts and Crafts movement, which thrived from 1876-1915, and continues to be celebrated today. These homes have great curb appeal, lots of detail and the amenities you need for modern living. Check out the collection for more great home designs.

Ranch

Our Ranch style house plan collection comprises single level homes with elongated elevations that suit placement on acreage or suburban lots, and the easy living open floorplans are ideal for families with both young and aging family members. The homes you'll see in this collection typically have a rectangular or L-shaped footprint, and low-pitched roof. They are ideal for placement of photovoltaics!  Take a look and tell us what you think.

Shingle

If you're looking for a traditional beach house or a home with timeless colonial beauty, you should definitely check out the homes in the Shingle stylecollection.   Homes in this collection typically feature steeper pitched roof lines, and shingle covered walls (of course!). They also have a smooth surface appearance with little or no decoration.
