• 2507 ft²
  • 4 Bed
  • 3 Bath

Floor Plans

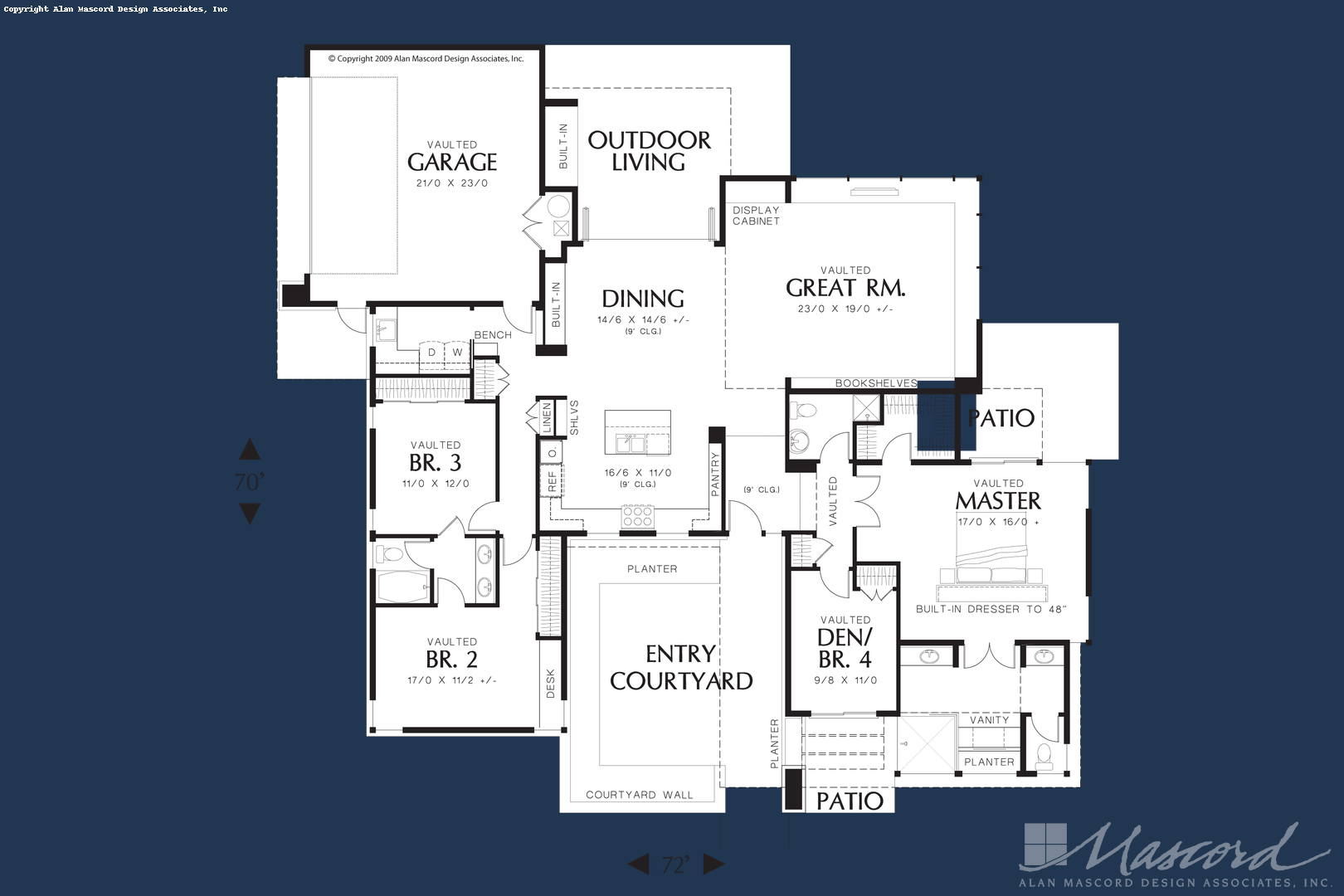

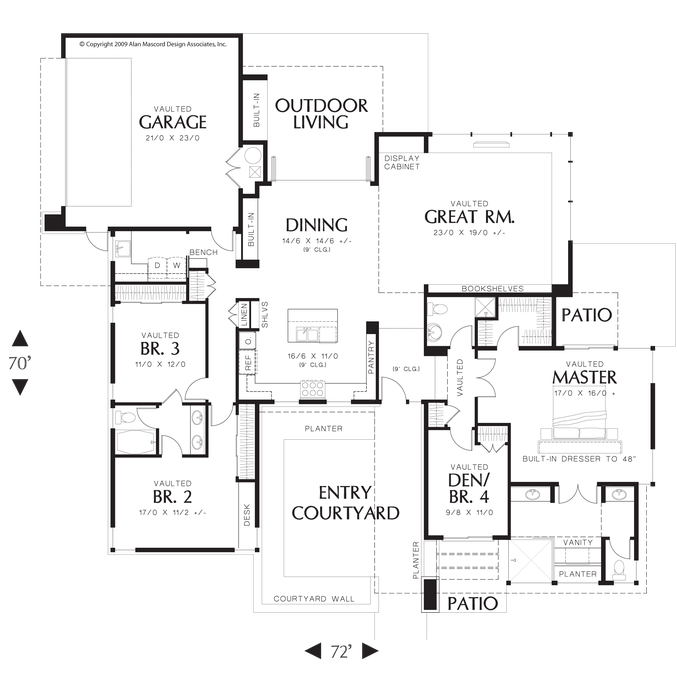

Main Floor Plan

Main Floor Plan image for Mascord Hamburg-Inviting Contemporary with walled front yard-Main Floor Plan

A Walk Through The Hamburg

Comfortable single-level living with plenty of natural light – that’s what our Hamburg home plan offers. Or, at least, that’s what most people notice on first seeing this contemporary ranch house plan. With the Hamburg our designers combined the best features of both ranch and contemporary styles. Asymmetrical rooflines, as are often found in contemporary floor plans, allow this unique home no fewer than three vaulted bedrooms. And like many ranch home plans, the Hamburg offers single-level living – perfect for age-in-place enthusiasts.

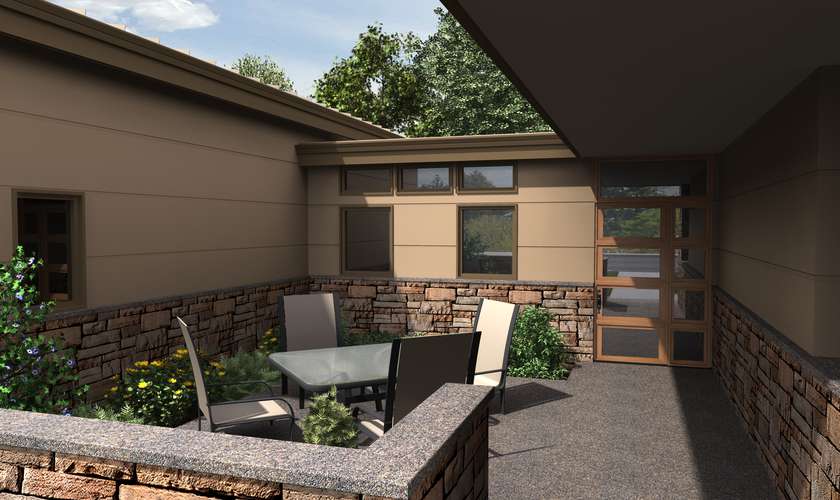

To imagine a walk-through of this beautiful home, let’s begin at the entry courtyard. The Hamburg house plan is wrapped around this built-in outdoor living area, complete with a protective half-wall for privacy. Imagine sipping your coffee here, protected on three sides by walls, enjoying the flora in the built-in planter along one wall. Continuing through the courtyard into the main home, you’ll notice the master suite on your left and the open kitchen/dining/great room straight ahead. We especially love the naturally lit, vaulted great room in the Hamburg. Again, notice the combination of contemporary style (natural light and generous windows) and ranch living (rear-facing communal living spaces, open floor plans). The great room also has built-in bookshelves as well as a display cabinet – perfect for keeping your treasured heirlooms and collectables completely dust-free.

Indeed, you’ll love the built-ins throughout the Hamburg house plan – from the desk in one of the smaller bedrooms to the dresser in the vaulted master bedroom, you’ll find thoughtful design touches throughout this home. Even the utility room has a built-in bench.

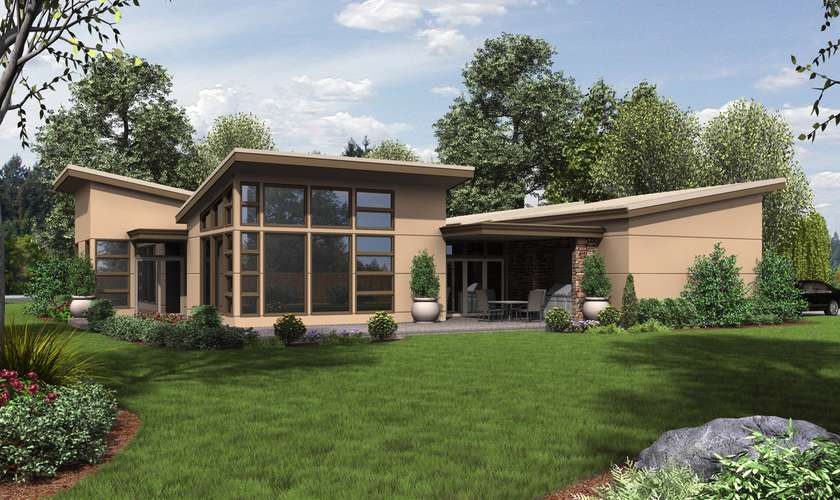

To get back to our tour, the hall to the utility room, two bedrooms and a shared bath are found in the left front corner of the design. In the left rear, you’ll find a vaulted two-car garage. Walking back into the great room, you’ll admire the glass-paneled double doors leading to the partially covered back patio. These doors may be completely opened in the summer, meaning the whole rear wall of your home can be removed to let the summer breeze flow through. While you might find this feature in a restaurant, you wouldn’t expect to see it in home plans – more evidence of cutting-edge contemporary design.

Because the Hamburg house plan is distributed in a semi-circle around the front courtyard, the bedrooms are especially quiet and private. The master suite includes two patios, a vaulted bedroom with a walk-in closet and a master bath with two sinks, a walk-in shower and a built-in vanity and exterior planter. Just outside the master suite, you’ll find an extra bedroom that can double as a playroom or office. A half-bath directly across the hall makes a perfect guest bathroom.

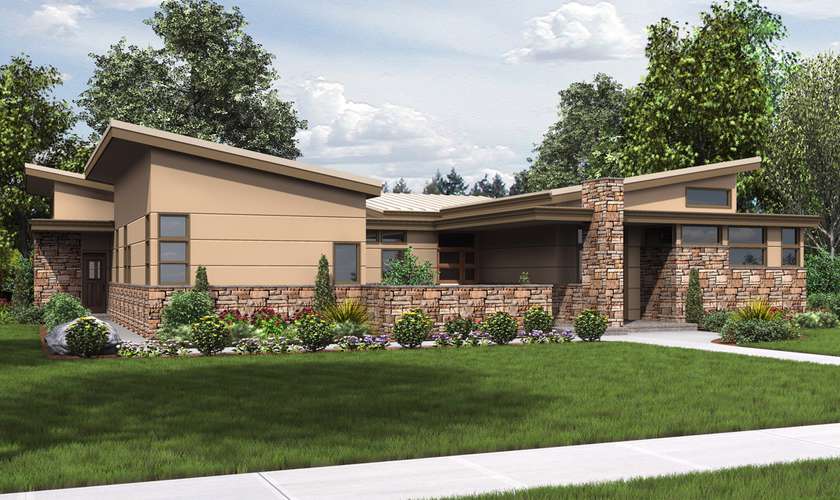

With plenty of high windows allowing light to pour in, the Hamburg will allow you to save on energy bills and keep your spirits up all winter long. And you’ll love the exterior treatment for these home plans – stunning natural stone creates a consistent visual element while also allowing for lots of pre-built garden boxes. The Hamburg house plan is thoughtfully designed to provide a single story of comfortable, bright space your whole family will enjoy.

For more details and information, as well as additional images, take a look at these single story home plans.

Plan Details

Heated Space

  • Main Floor2507 sqft

  • Total Area 2507 sqft

Beds and Baths

  • Bedrooms4

  • Full Baths3

  • Floors1

Exterior Dimensions

  • Width74'-6"

  • Depth70'-0"

  • Height (to Midpt)14'-4"

  • Height (to Peak)17'-1"


  • Garage Bays2 Car Garage

  • Garage Area515 sqft

  • Garage LocationSide

  • Garage OrientationStraight-On


  • Roof FramingStick

  • Roof Material Metal/Standing Seam Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch2/12

Order this plan

Construction Plan Set
Additional Options



or call to order

1 (800) 411-0231

Mon-Fri: 8am-5pm PST

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Modify This Plan

Tell us what you'd like to change, and we will prepare a quote to implement your required changes

What will it cost to build THIS house plan?

Order your custom Cost to Build Report specific to your houseplan and building lot zip code for only $30 today, and develop your construction budget before you build. Powered by StartBuild technology.

Have other questions?

If you can't find the information you need online please contact us

Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST


Our Contemporary House Plans collection presents modern homes designed around light and space: open, airy and with an abundance of windows in various modern styles, these homes are generously appointed to bring ample light indoors. Unique rooflines and asymmetrical designs create rooms that feel as grand as they are innovative. With a focus on maximizing square footage and minimizing costs, these pioneering modern homes are as reasonable to build as they are pleasant to live in, which we're sure you'll love.


Our Ranch style house plan collection comprises single level homes with elongated elevations that suit placement on acreage or suburban lots, and the easy living open floorplans are ideal for families with both young and aging family members. The homes you'll see in this collection typically have a rectangular or L-shaped footprint, and low-pitched roof. They are ideal for placement of photovoltaics!  Take a look and tell us what you think.

Similar & Related Plans

You can find this plan in these related styles and collections

Builders known to be experienced constructing this home include:

KHP Homes Logo image
KHP Homes Wesley Chapel, FL 8134215678
(find more builders in our Builder Directory)

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
