• 2110 ft²
  • 3 Bed
  • 2 / 1 Bath

Floor Plans

Main Floor Plan

Main Floor Plan image for Mascord Delores-Great Entertaining Space with Connection to Outdoors-Main Floor Plan

A Walk Through The Delores

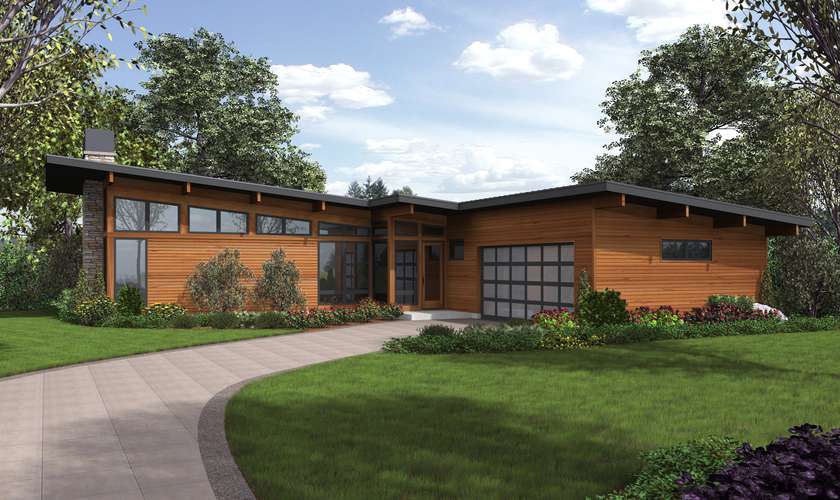

The Delores might just be your forever home. When you glimpse the blueprints, you’ll see just what we mean. This contemporary home is just as versatile as it is stylish. To start, this home is single level, which makes it perfect for empty nesters or people who plan to age in place. Yet the design means that it’s perfectly possible to comfortably raise a family in this home, too. With wide open spaces and an enormous rear patio, this home could be a vacation home—or it could be the home you spend your life in, letting you feel like you’re always on vacation!

Step through the front door and into the vaulted great room, and you’ll immediately feel the sense of relaxation this home was designed to give you. Windows along the back and sides of this space give you a clear view of the beautiful landscape you’ve created. It’s an inviting space, one that will tempt you to settle into an armchair and enjoy the view. Display shelves give you the perfect spot to show off family photos or the treasures you’ve collected over the years, and the fireplace on one wall will keep you feeling warm and cozy when the snows start to fall in the winter.

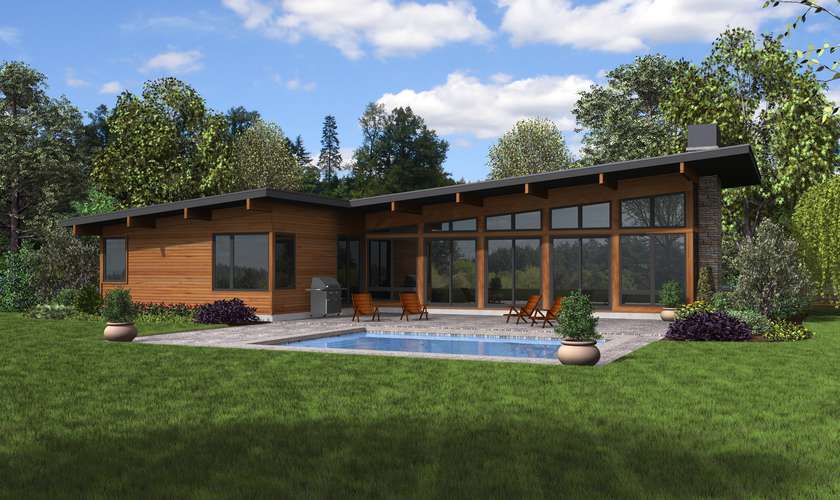

In the summer, though, you won’t be able to resist slipping out to the back patio. Like the rest of the Delores, this is a versatile space that will let you do whatever it is you’ve always wanted to do with an outdoor living space. Perhaps a pool is what you want, and if so, there is plenty of room here, plus plenty of seclusion. This space could also become an outdoor kitchen, or it could simply be the outdoor haven that you retreat to when you need an escape.

Speaking of retreats, the master bedroom may end up being your favorite place to escape. Windows here give you the same beautiful view as the living space, and sliding doors provide access to the back patio. A walk-in closet is easily accessible so that you can slip in to change into a bathing suit, evening attire or whatever outfit suits the occasion. Within the master bath, a beautifully designed tiled shower lets you refresh yourself—with dual showerheads so you can enjoy the sensation of rainfall. Too, there is a spa tub for when you’d prefer a warm bath to relax.

The Delores is not without a practical side. The first thing you’ll notice between the garage and the foyer is a mudroom that doubles as a laundry area. It’s a useful space that lets you confine the mess from outdoors while helping you tend to laundry and other day-to-day chores. A walk-in pantry off the kitchen provides the room you need to store dry goods, and linen closets keep things like towels and tablecloths organized.

Two additional bedrooms can serve a variety of purposes. The kids will love them if you’re planning a family, and if not, then these spaces make ideal guest rooms when you have friends come to visit. Other possibilities include home office space, a studio or a comfortable den where you can spend quiet evenings reading—the choice is yours!

Plan Details

Heated Space

  • Main Floor2110 sqft

  • Total Area 2110 sqft

Beds and Baths

  • Bedrooms3

  • Full Baths2

  • Half Baths1

  • Floors1

Exterior Dimensions

  • Width64'-6"

  • Depth75'-0"

  • Height (to Midpt)13'-1"

  • Height (to Peak)16'-0"


  • Garage Bays2 Car Garage

  • Garage Area576 sqft

  • Garage LocationSide

  • Garage OrientationL-Shaped


  • Roof FramingStick

  • Roof Material Metal/Standing Seam Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch1/12

This plan is based upon design - 1256

    Check out the details for Plan 1256 here.

    Order this plan

    Construction Plan Set
    Foundations(View In-Ground Basement Details)
    Additional Options



    or call to order

    1 (800) 411-0231

    Mon-Fri: 8am-5pm PST

    High-Res Mktg Images $30

    Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

    Modify This Plan

    Tell us what you'd like to change, and we will prepare a quote to implement your required changes

    What will it cost to build THIS house plan?

    Order your custom Cost to Build Report specific to your houseplan and building lot zip code for only $30 today, and develop your construction budget before you build. Powered by StartBuild technology.

    Have other questions?

    If you can't find the information you need online please contact us

    Call: 1 (800) 411-0231
    Mon-Fri : 8am - 5pm PST


    Our Contemporary House Plans collection presents modern homes designed around light and space: open, airy and with an abundance of windows in various modern styles, these homes are generously appointed to bring ample light indoors. Unique rooflines and asymmetrical designs create rooms that feel as grand as they are innovative. With a focus on maximizing square footage and minimizing costs, these pioneering modern homes are as reasonable to build as they are pleasant to live in, which we're sure you'll love.

    Mountain Modern

    Mountain modern architectural style homes are inspired by the natural beauty of mountainous regions and are designed to blend in with their surroundings. These homes are often located in ski resorts, mountain towns, or other natural settings and are designed to take advantage of the views. They are characterized by their use of natural materials, such as wood, stone, and glass, and may have large windows or outdoor living spaces to bring the outdoors in. Mountain modern homes may have a contemporary or traditional aesthetic, and may incorporate elements such as steep pitched roofs, exposed beams, and stone or wood exteriors. The interiors of these homes often feature a comfortable, welcoming atmosphere, with an emphasis on natural materials and a connection to the surrounding landscape. Mountain modern architecture aims to create a harmonious relationship between the built environment and the natural surroundings.


    Our Ranch style house plan collection comprises single level homes with elongated elevations that suit placement on acreage or suburban lots, and the easy living open floorplans are ideal for families with both young and aging family members. The homes you'll see in this collection typically have a rectangular or L-shaped footprint, and low-pitched roof. They are ideal for placement of photovoltaics!  Take a look and tell us what you think.

    Similar & Related Plans

    Why you should buy your Mascord plan directly from us

    We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

    As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

    If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

    We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

    To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

    Will This Design Work For Your Location?

    The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

    In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

    Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

    When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

    All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

    Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

    To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

    If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

    We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

    Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

    In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

    Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
