• 2550 ft²
  • 4 Bed
  • 3 / 1 Bath

Floor Plans

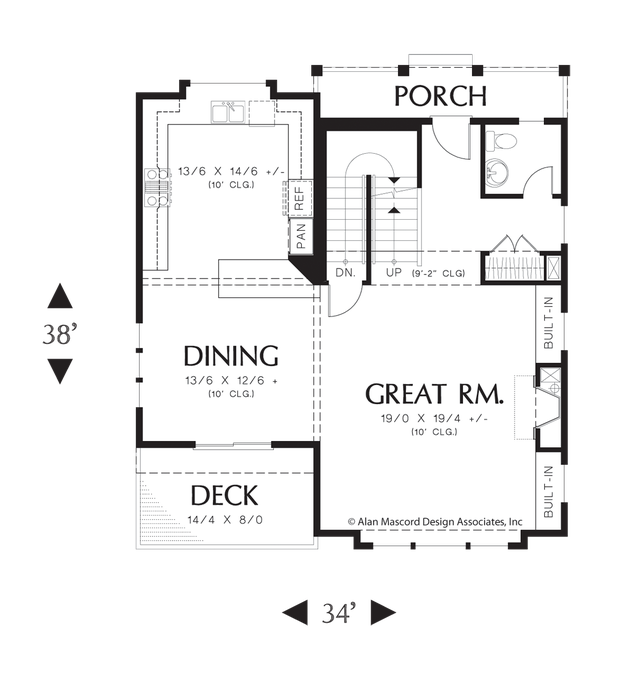

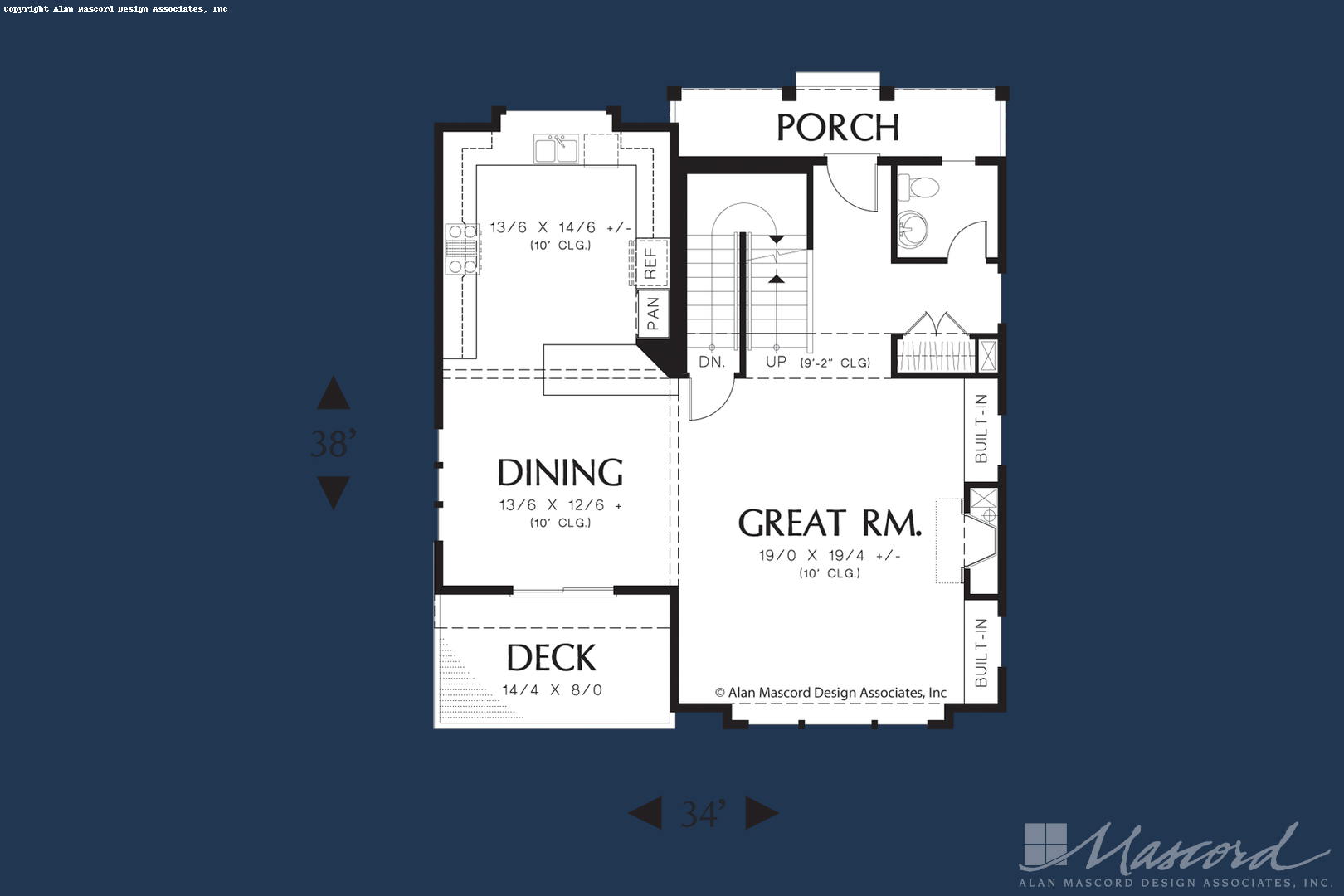

Main Floor Plan

Main Floor Plan image for Mascord Newcastle-Classic Good Looks, Beautiful Interior Spaces  -Main Floor Plan

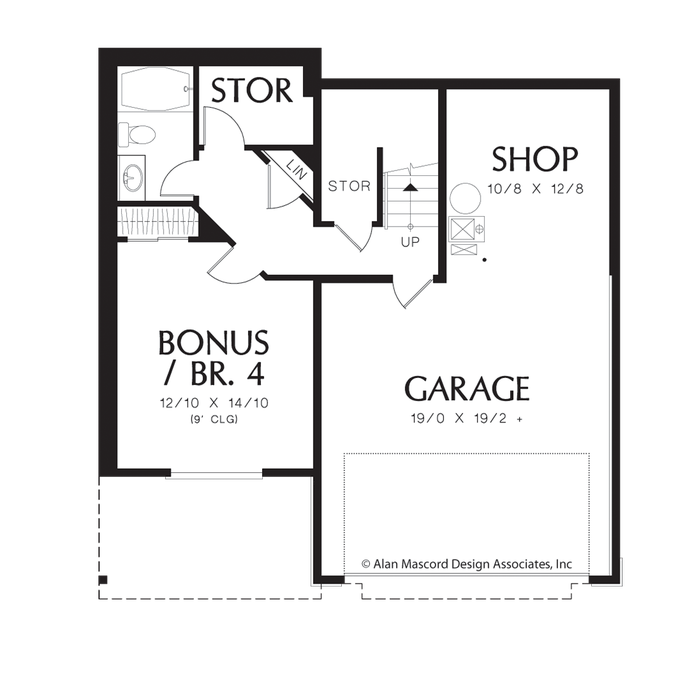

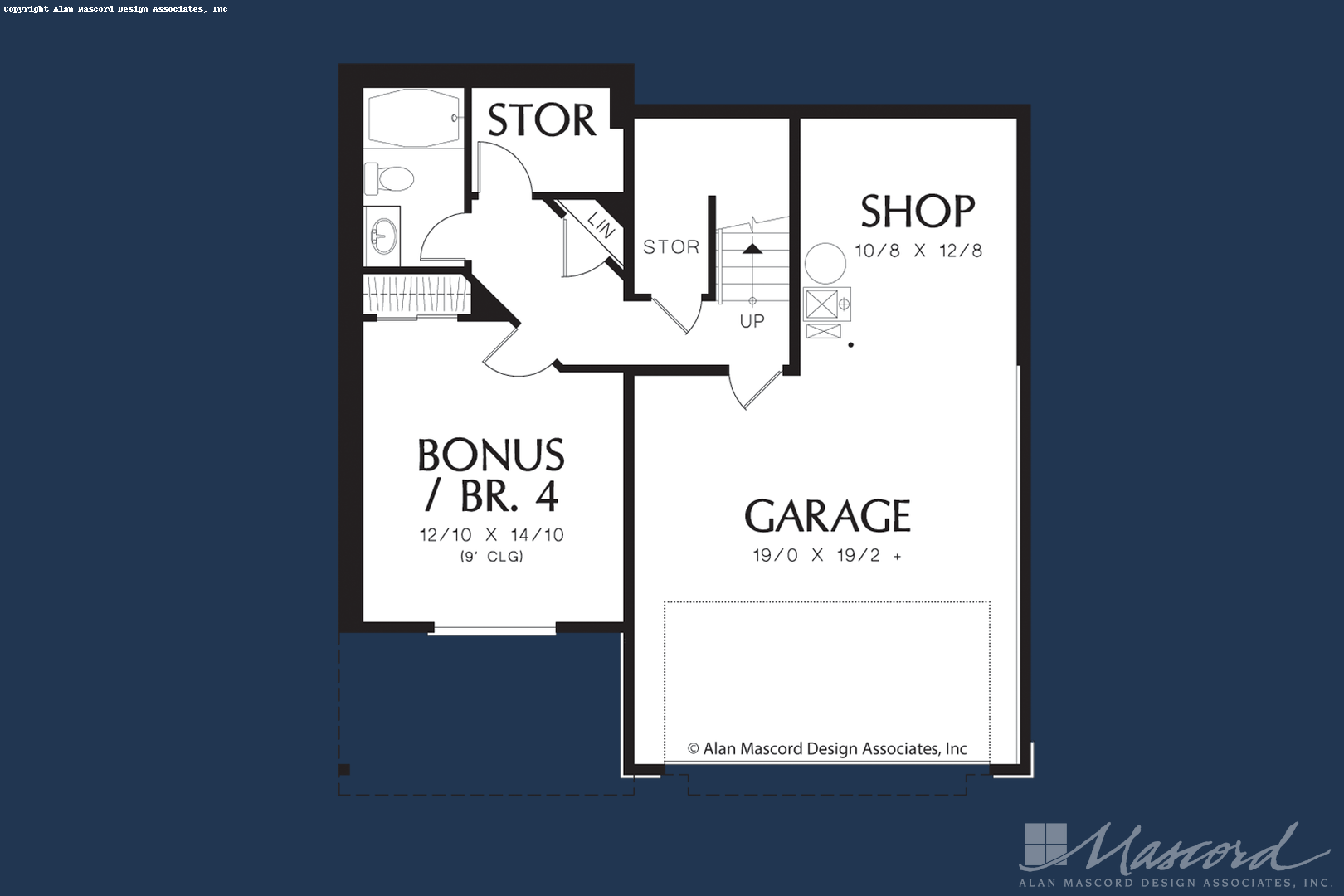

Lower Floor Plan

Lower Floor Plan image for Mascord Newcastle-Classic Good Looks, Beautiful Interior Spaces  -Lower Floor Plan

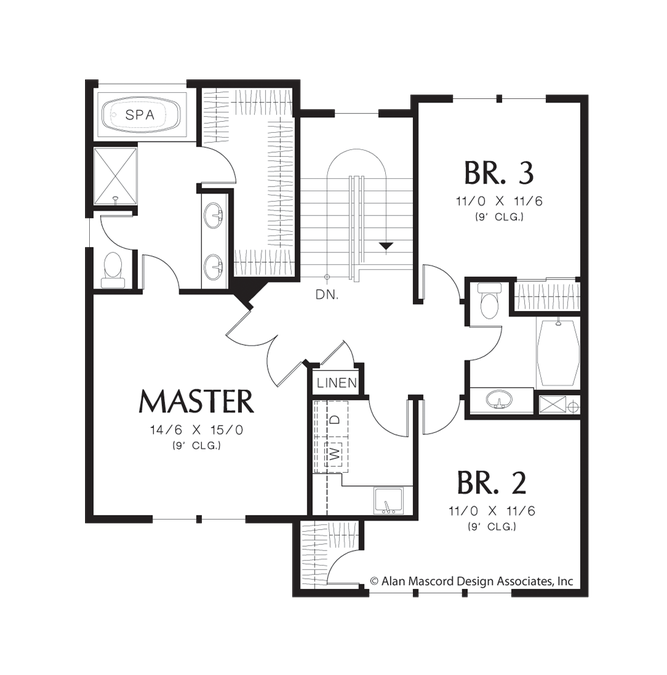

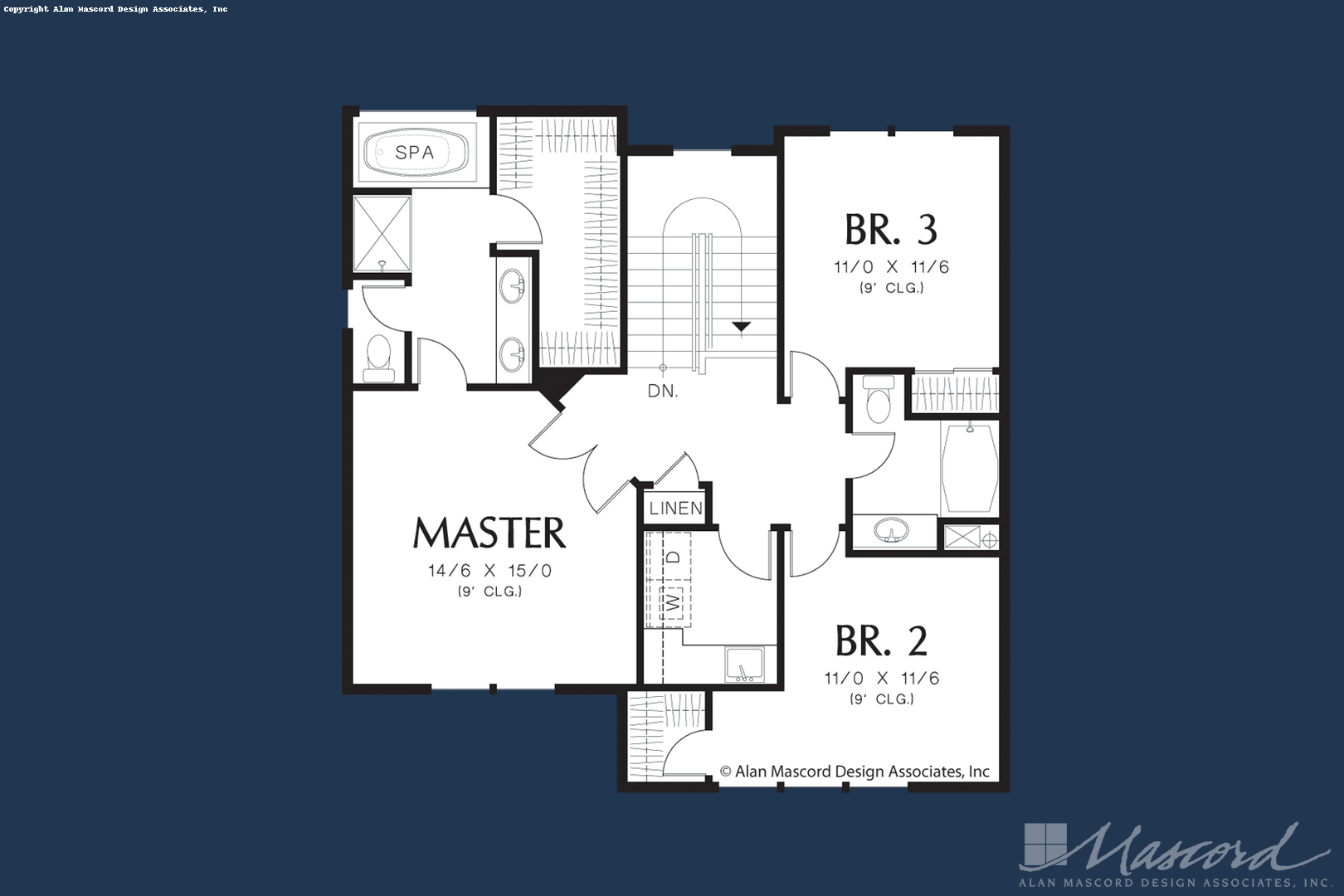

Upper Floor Plan

Upper Floor Plan image for Mascord Newcastle-Classic Good Looks, Beautiful Interior Spaces  -Upper Floor Plan

A Walk Through The Newcastle

The Newcastle is a stately traditional home that you’ll love to decorate for the Holidays. Come December, you and your children will have a blast as you deck the front porch with lights, greenery and other festive trimmings.

Your home will be the home that the entire extended family wants to visit for Christmas. As they walk through the front door, they’ll have a view into the large, open great room, where a sparkling Christmas tree and warm, crackling fire awaits them. Meanwhile, you’ll be in the kitchen, putting the wraparound counter space to excellent use as you put the finishing touches a traditional feast.

Once dinner time arrives, use the bar between the kitchen and dining room to set out the treats you’ve prepared as your guests gather around the table. Three windows to one side of the room and the sliding doors to the back deck will give your guests a view of the wintery white landscape, making the atmosphere just right.

For guests that spend the night, the spare bedroom on the lower floor gives them comfort and privacy that they won’t experience in a hotel — plus a beautiful view of your landscape through a large picture window. With a full bathroom, closet and linen closet, your guests might just decide to extend their stay!

When it comes to more practical matters, the Newcastle has you covered. On the lower floor, you’ll find a two-car garage with a workshop where you can work on all of your favorite hobbies and DIY projects. There is also a large storage room, perfect for storing your seasonal decorations.

On the upper floor, you’ll find two bedrooms for the kids and a shared bathroom between the bedrooms. The laundry room is also on this floor, which means you’re never more than a few steps away from the bulk of the home’s dirty laundry. Counter space within the laundry room gives you a great place for sorting and folding so that you can spend less time on chores and more time enjoying your new home.

Speaking of enjoyment, the master suite gives you several wonderful luxuries. When the day is done, take some time to relax and unwind in the master bath’s spa bathtub. In the mornings, you can wake up to a brisk shower in the tiled shower. Whether you’re looking for pajamas, work clothes or formal wear for a night out, the walk-in closet is spacious enough to keep your clothes neat and organized.

Plan Details

Heated Space

  • Upper Floor1010 sqft

  • Main Floor1067 sqft

  • Basement473 sqft

  • Total Area 2550 sqft

Beds and Baths

  • Bedrooms4

  • Full Baths3

  • Half Baths1

  • Floors2

Exterior Dimensions

  • Width34'-0"

  • Depth38'-0"

  • Height (to Midpt)25'-9"

  • Height (to Peak)32'-0"

Garage

  • Garage Bays2 Car Garage

  • Garage Area509 sqft

  • Garage LocationRear

  • Garage OrientationRear

Structure

  • Roof FramingTruss

  • Roof Material Shake/Comp Roof

  • Snowload27 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch10/12

This plan is based upon design - 22187

  • Added 6 sqft to finished area

  • Overall Depth increased 3ft.
