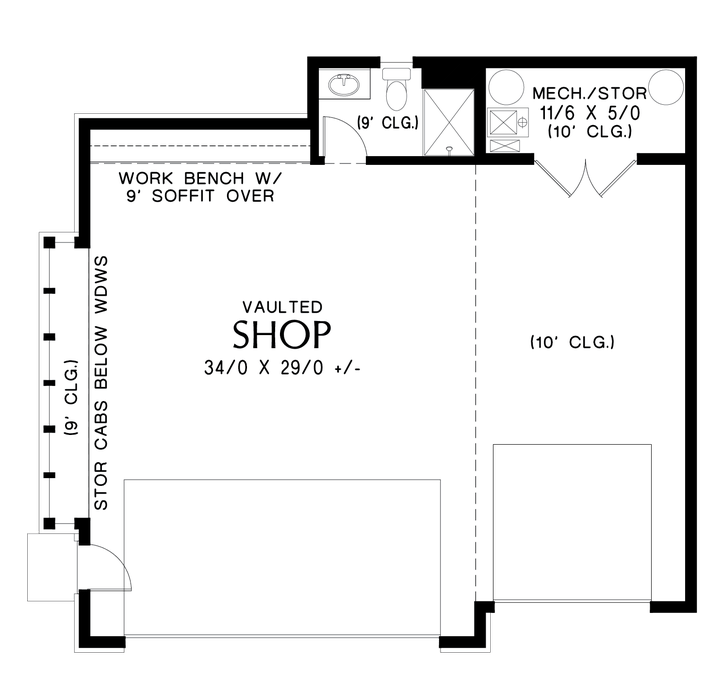

Main Floor Plan

Main Floor Plan image for Mascord Shelby-The Perfect Place for Projects!-Main Floor Plan

A Walk Through The Shelby

Everyone needs a space to call their own, whether that’s a studio, a workshop or a spare garage that you can use to work on your classic project cars. This building gives you exactly that – room enough for three cars or anything else that you could think to do.

If you’re looking for an outbuilding that accents a Contemporary home, then this garage plan is an excellent choice. The asymmetric roof line gives the building an industrial style, but the look is softened with the addition of stone siding. With windowed garage doors and more windows above the storage cabinets, you’ll have plenty of natural sunlight to illuminate your workspace.

Inside, you’ll find limitless opportunities. The storage cabinets give you ample space for both tools and parts – and you may even find space for that big toolbox you’ve always wanted. The built-in workbench along the back wall gives you even more possibilities. Here, you’ll have plenty of room to work on smaller projects. Hang pegboards or an innovative shelving system behind that workbench to give yourself even more places to keep things organized.

If you need even more storage, then you’ll love the mechanical room. This room keeps the building’s plumbing and HVAC systems away from sawdust and dirt, and it will also give you a big space for shelving or to keep larger items out of the way.

Of course, this garage doesn’t have to be all about work. With so much floor space, you can easily add some seating and a widescreen TV. On race days, invite your friends over to cheer on their favorite drivers or just enjoy a few drinks while you and your friends work on a car.

With a full bathroom to the rear of the building, you won’t have to trudge back to your home to use the facilities, and you can even take a quick shower to rid yourself of dust, grease and grime once you’re finished for the day. Who knows – this garage plan has so many amenities that you may find you like it even more than your own home!

Designers Insight

If you’re looking for a great new workspace, this garage plan comes with unlimited possibilities. With its Contemporary design, you’ll love the way it pairs with your home or business – and you’ll find that its sleek, modern look helps you stay inspired no matter how you use the space.

This three-car garage plan has enough floor space for a variety of activities. If you’re an artist, use the room to set up easels, models and everything else that you need to create beautiful works of art. The storage cabinets along the side of the garage give you a handy spot to organize paints, brushes, canvases and all the other supplies you need.

Perhaps you prefer woodworking. If that’s the case, you’ll have plenty of room for several different wood saws, and the high ceilings will make it easy for you to maneuver lumber and taller projects. The work bench along the rear wall gives you a place to work on smaller crafts – perhaps a wood carving or a small spice rack – and you’ll still have room left over to set up sawhorses or workbenches wherever you need them.

If model railroads or another type of modeling is more your speed, you’ll have the room to finally build that enormous layout – or several smaller layouts or dioramas. You’ll also be able to use the storage room in the rear of the building along with the built-in cabinets to keep trains, tools and other essentials organized.

And, of course, you can always use this garage for its intended purpose! Buy a classic car or two and then spend endless hours souping them up.

Whether you use this garage for hobbies, your small business or something else, you’ll find yourself enjoying the hours that you spend here. You’ll even have a compact bathroom so that you don’t have to make trips back and forth between your home and your workshop throughout the day. If you’re covered in sawdust, paint or grease, why haul that mess back to your house? Take a quick shower in the bathroom so that you can wrap up your day feeling clean and refreshed.

Plan Details

Beds and Baths

  • Full Baths1

  • Floors1

Exterior Dimensions

  • Width37'-0"

  • Depth35'-6"

  • Height (to Midpt)15'-4"

  • Height (to Peak)17'-8"

Garage

  • Garage Bays3 Car Garage

  • Garage Area1136 sqft

  • Garage LocationFront

  • Garage OrientationDetached

Structure

  • Roof FramingStick

  • Roof Material Metal/Standing Seam Roof
    Waterproof Membrane Roofing

  • Snowload41 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch2/12
